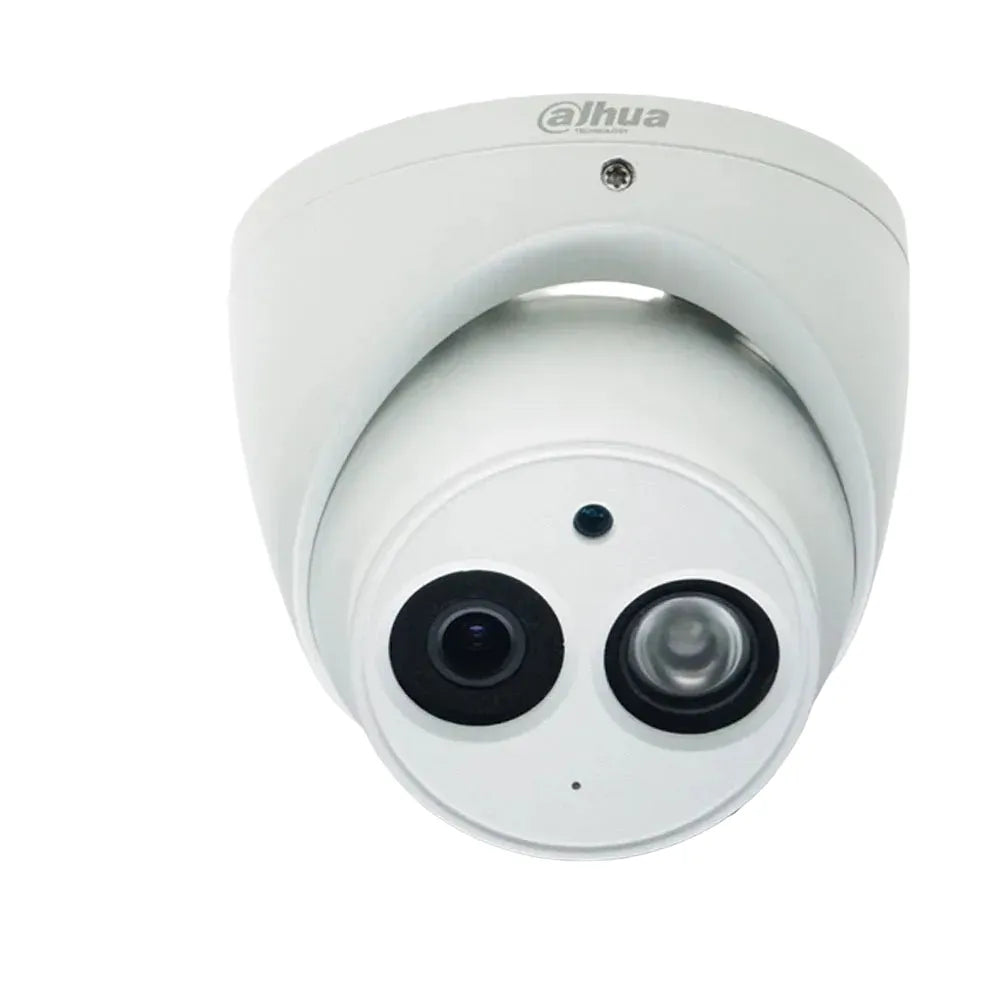

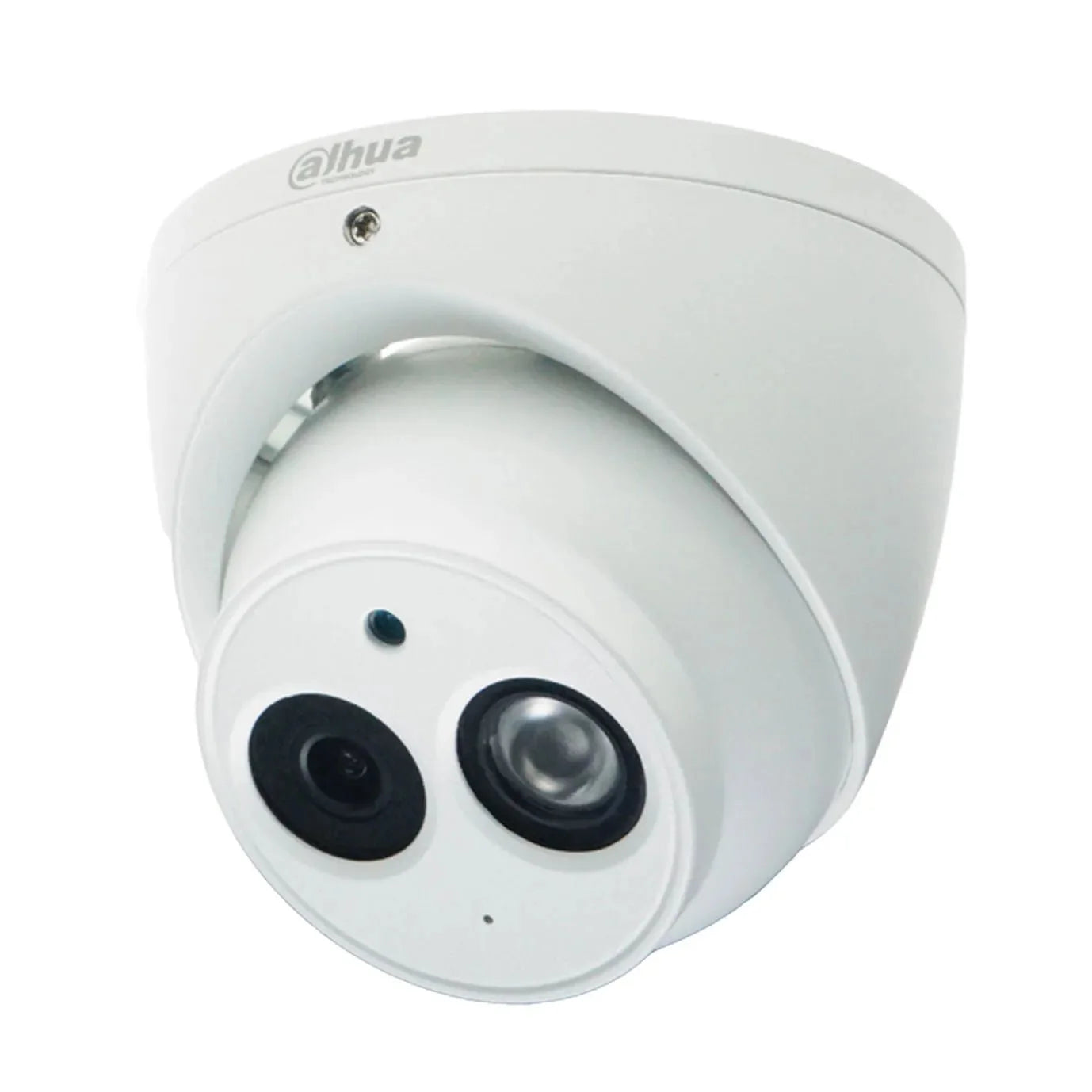

Night Vision IP Camera for Home Security
Camera | |
Image Sensor |
1/2.7” 4Megapixel progressive scan CMOS |
IPC-HDW4631C-A |
1/2.9” 6Megapixel progressive scan CMOS |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Minimum Illumination |
0.002Lux(Color) |
0Lux(IR on) |
|
S/N Ratio |
More than 56dB |
IR Distance |
Distance up to 50m |
IR On/Off Control |
Auto/ Manual |
IR LEDs |
1 |
Lens | |
Lens Type |
Fixed |
Mount Type |
Board-in |
Focal Length |
2.8mm(3.6mm,6mm optional) |
Max. Aperture |
F1.6 |
IPC-HDW4631C-A |
F2.5/F2.2/F2.0 |
Angle of View |
2.8mm:H:104.2°,V:58.3° |
IPC-HDW4631C-A |
2.8mm: H: 99° V: 69.4° 3.6mm: H: 70° V: 48° 6mm: H: 47.34° V: 33.75° |
Optical Zoom |
N/A |
Focus Control |
Fixed |
Pan/Tilt/Rotation | |
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ |
Intelligence | |
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
Video | |

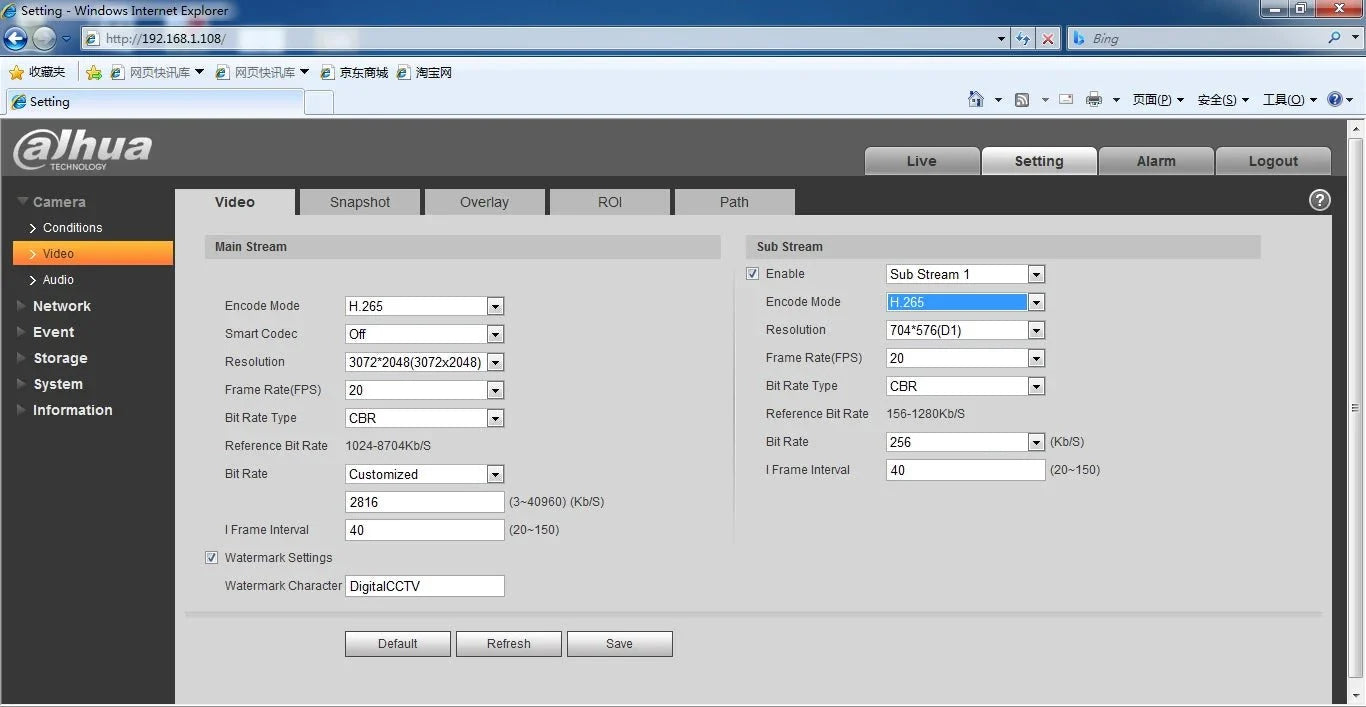

Compression |
H.265+/H.265/H.264+/H.264 |
Resolution |
4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/ |
IPC-HDW4631C-A |
6M(3072×2048)/ 5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/ |
VGA(640×480)/ CIF(352×288/352×240) |
|
Frame Rate |
50Hz:Main Stream(3072×2048@20fps),Sub Stream(704×576@20fps),Third Stream(1280×720@6fps);Main Stream(2592×1944@25fps),Sub Stream(704×576@25fps),Third Stream(1280×720@4fps) |
60Hz:Main Stream(3072×2048@20fps),Sub Stream(704×480@20fps),Third Stream(1280×720@7fps);Main Stream2688×1520@30fps),Sub Stream(704×480@30fps),Third Stream(1280×720@10fps) |
|
Bit Rate |
H.264: 24K ~ 10240Kbps H.265: 8K ~ 8192Kbps |
Day/Night |
Auto(ICR) / Color / B/W |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detetion |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization (EIS) |
N/A |
Smart IR |
Support |
Defog |
Support |

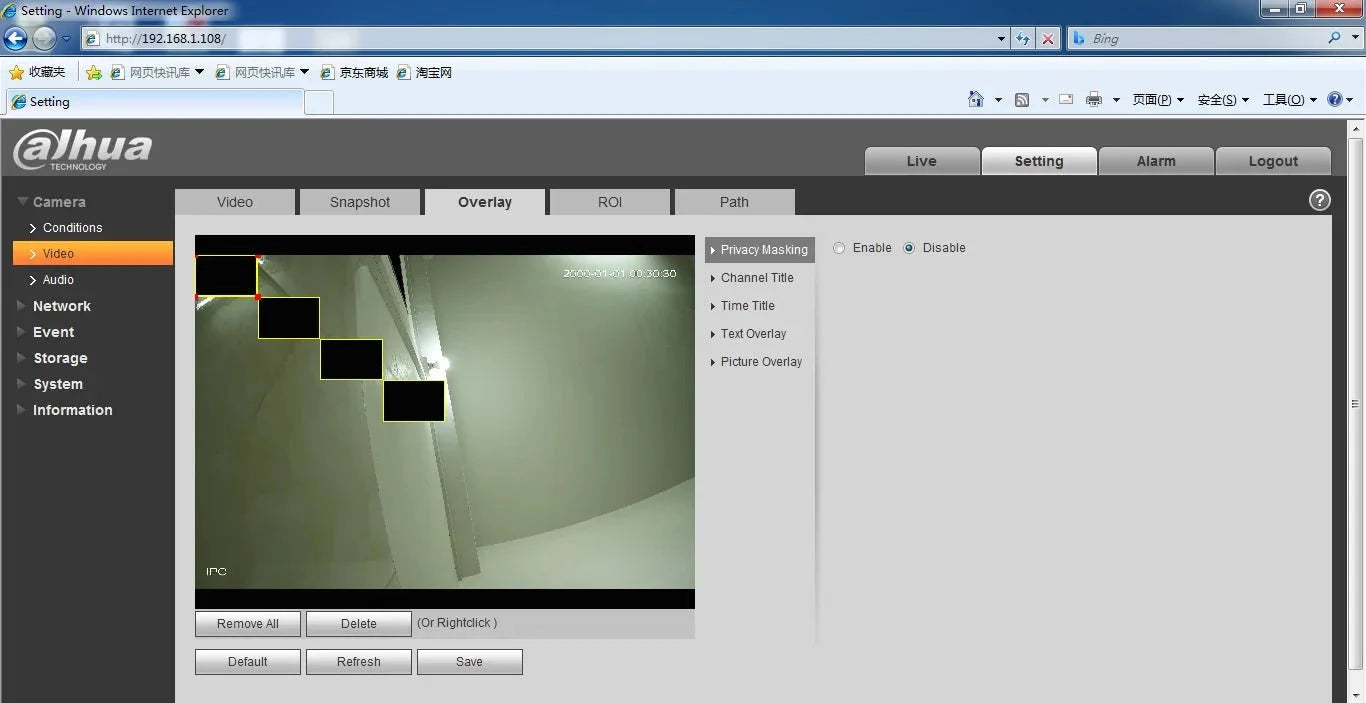

Privacy Masking |
Off / On (4 Area, Rectangle) |

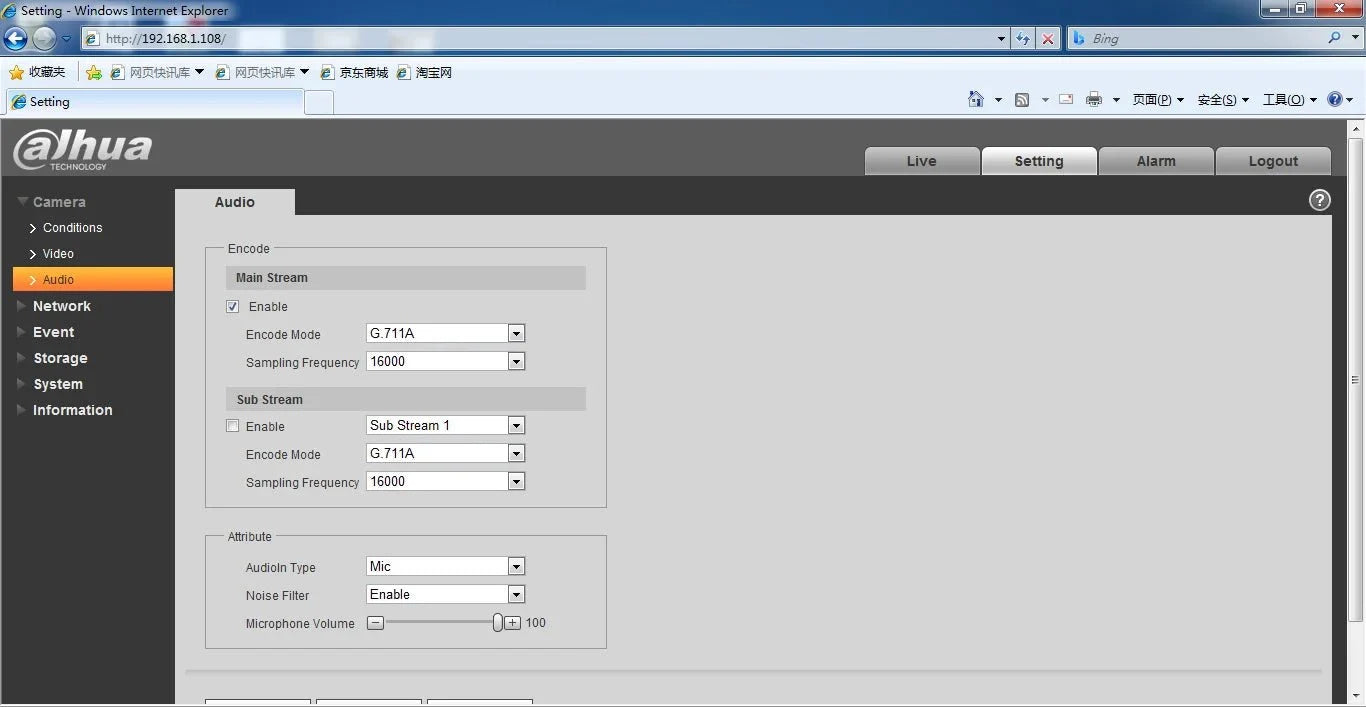

Audio | |
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
Network | |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability |
ONVIF, PSIA, CGI |
Streaming Method |
Unicast / Multicast |
Max User Access |
10 Users /20 Users |
Edge Storage |
NAS |
Local PC for instant recording |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |

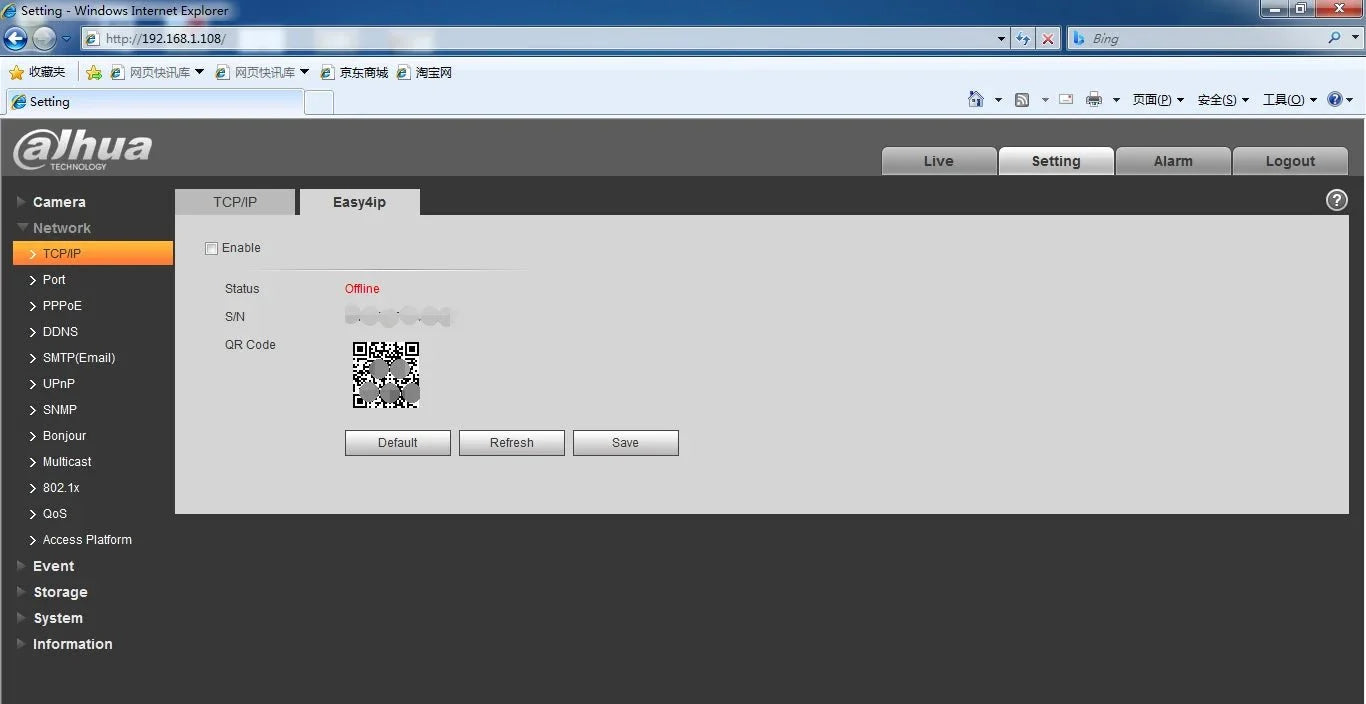

Smart PSS, DSS, Easy4ip |
Smart Phone |
IOS, Android |
Interface | |
Video Interface |
N/A |
Audio Interface |
1/1 channel In/Out RCA Build in Mic |
Alarm |
N/A |
Electrical | |
Power Supply |
DC12V, PoE(802.3af)(Class 0) |
Power Consumption |
2.4W,<5.8W |
IPC-HDW4631C-A |
3.08W,<4.8W |
Environmental | |
Operating Conditions |
-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions |
-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection |
IP67 |
Vandal Resistance |
IK10 |
Construction | |
Casing |
Metal+Plastic |
IPC-HDW4631C-A |
Metal |
Dimensions |
Φ110mm×95mm |
IPC-HDW4631C-A |
Φ106mm×94mm |
Net Weight |
0.32kg |
IPC-HDW4631C-A |
0.47kg |
Gross Weight |
0.46kg |
IPC-HDW4631C-A |
0.65kg |
