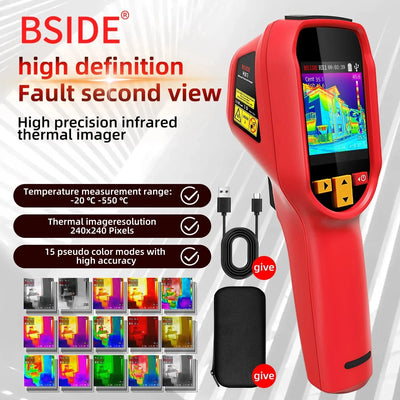

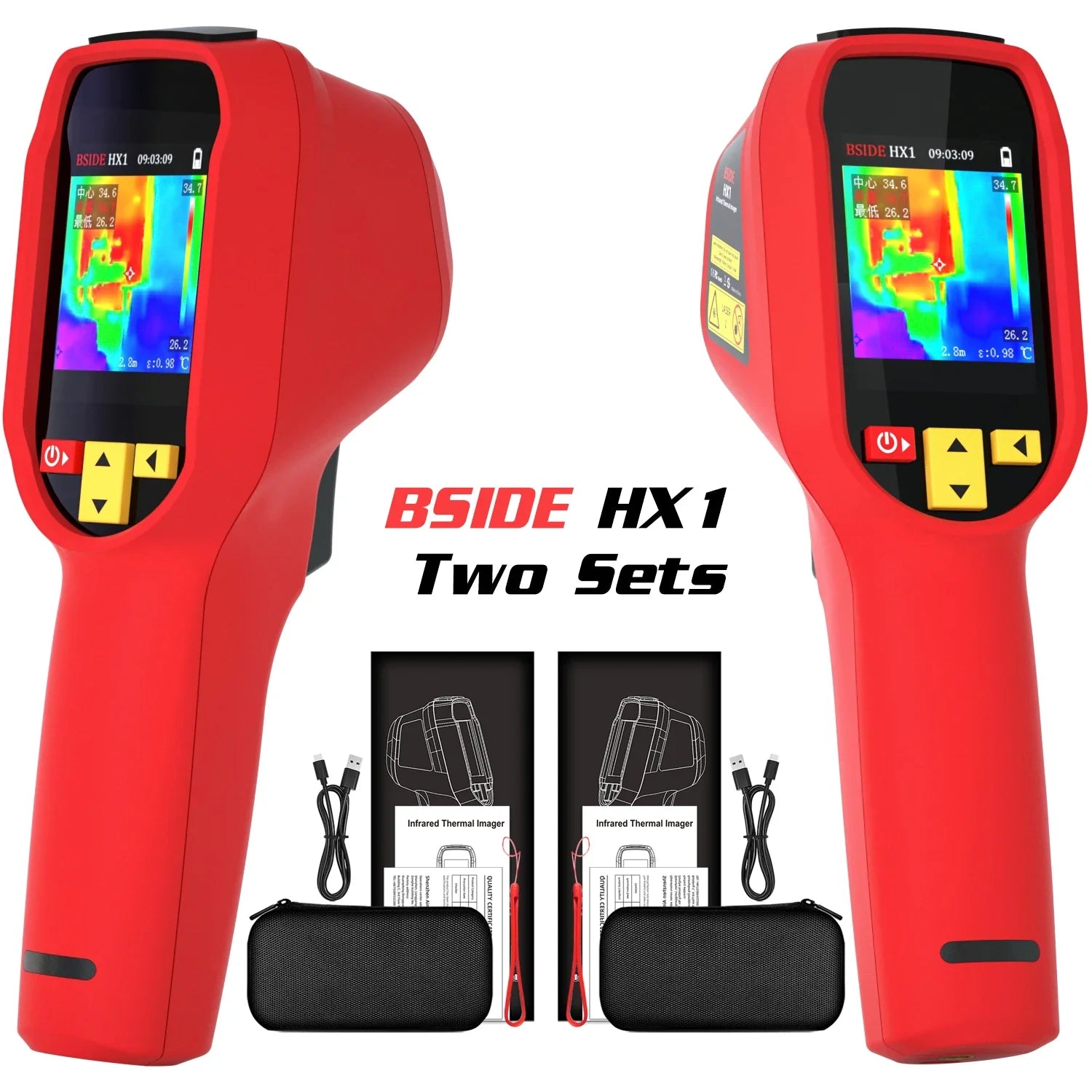

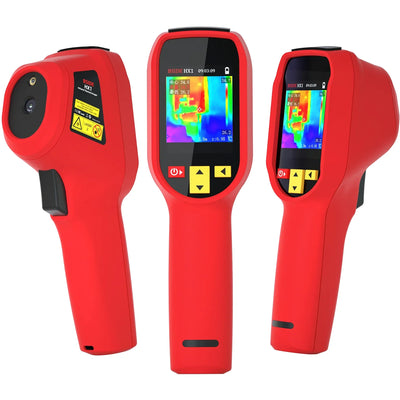

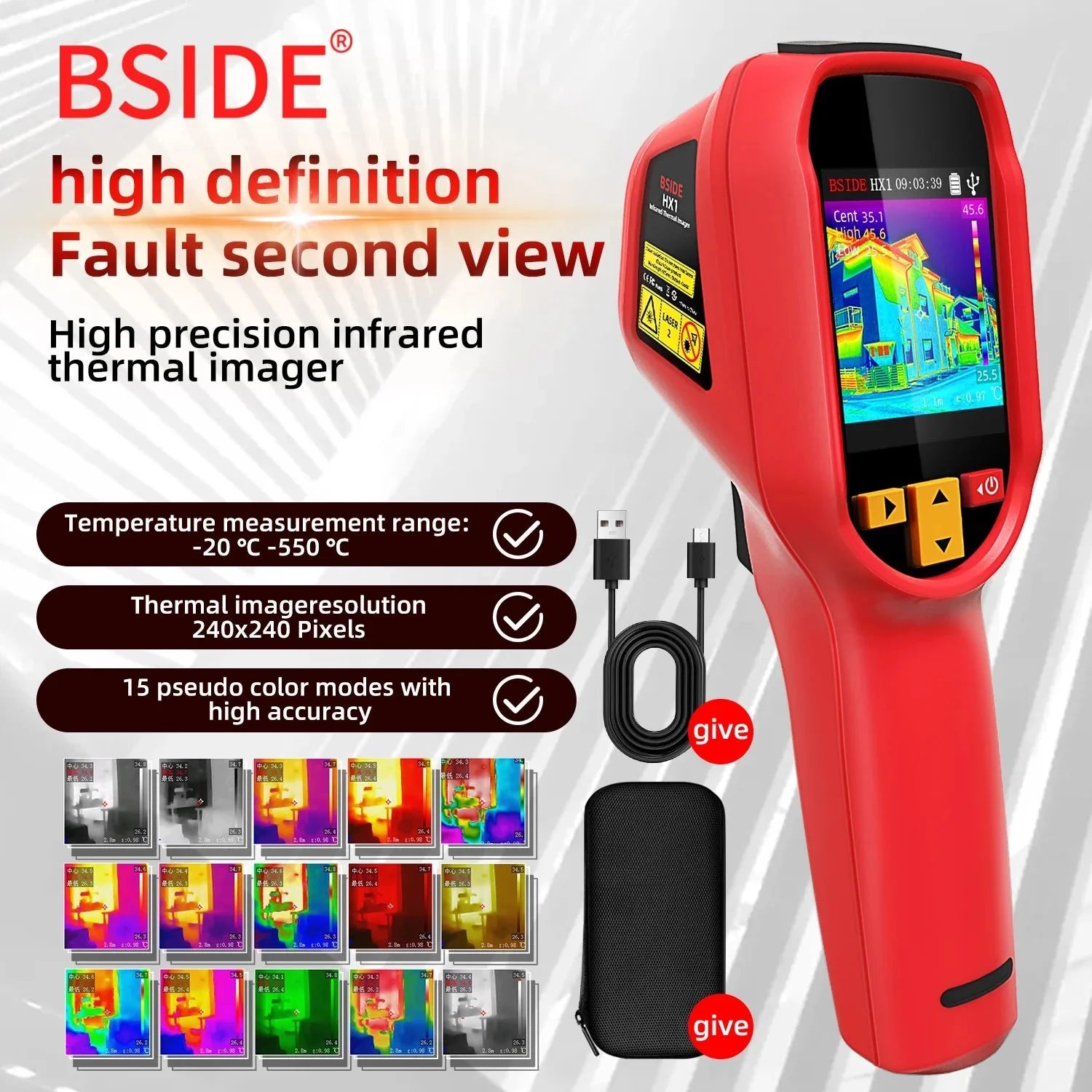

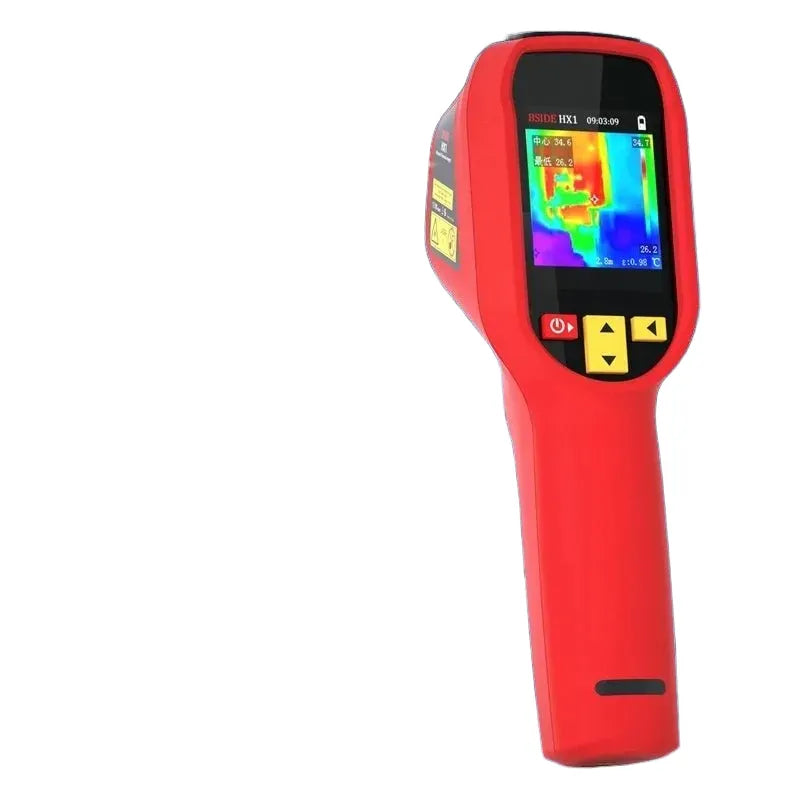

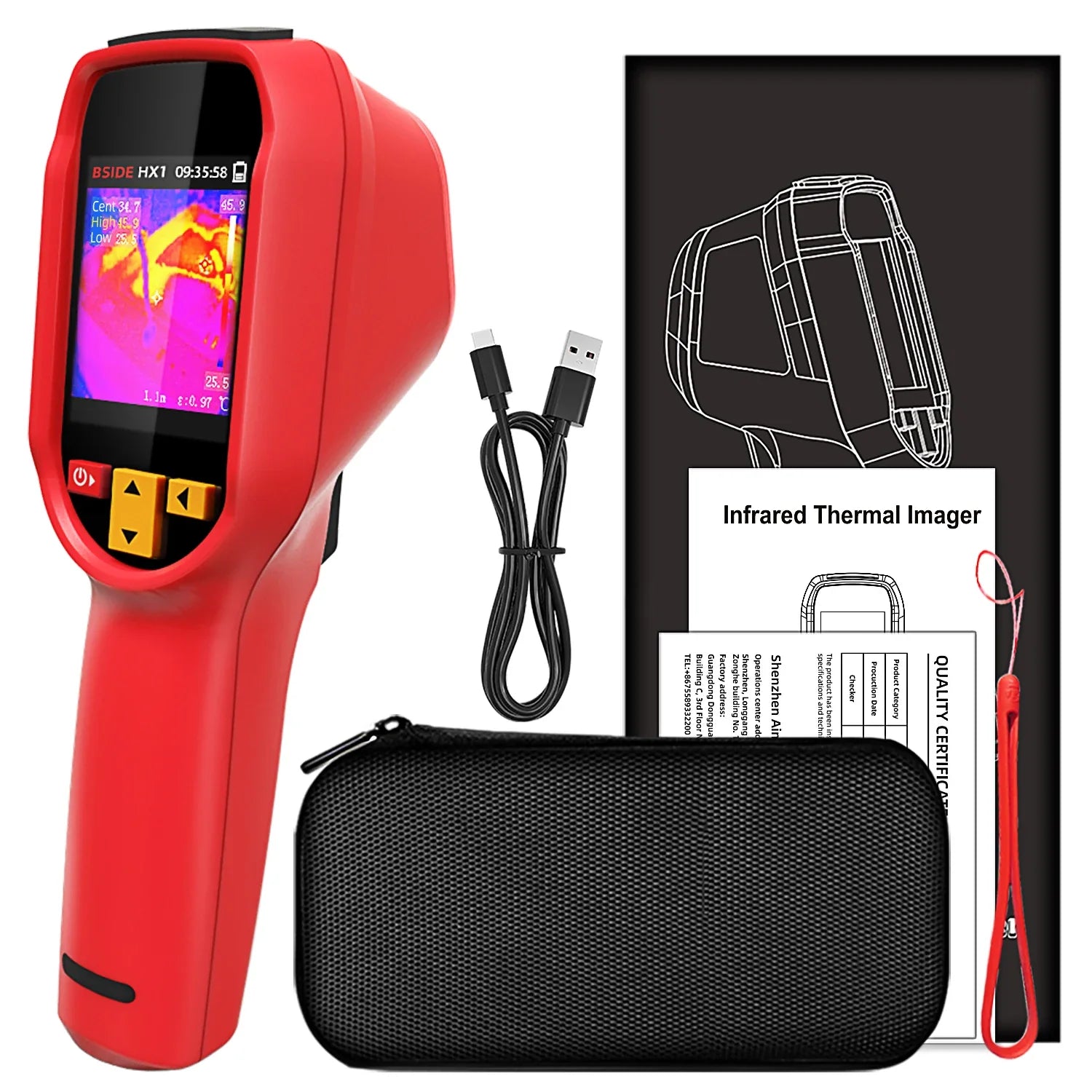

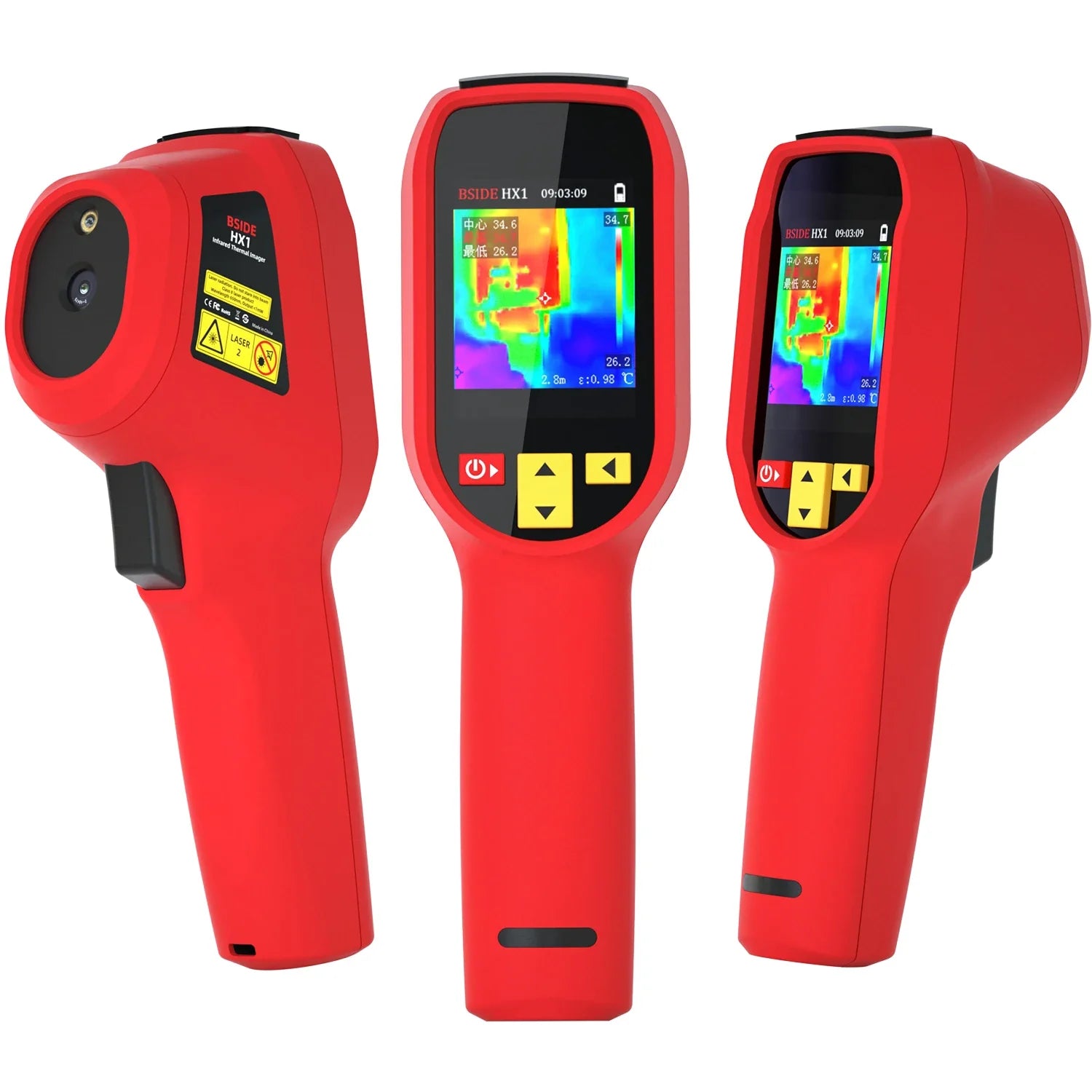

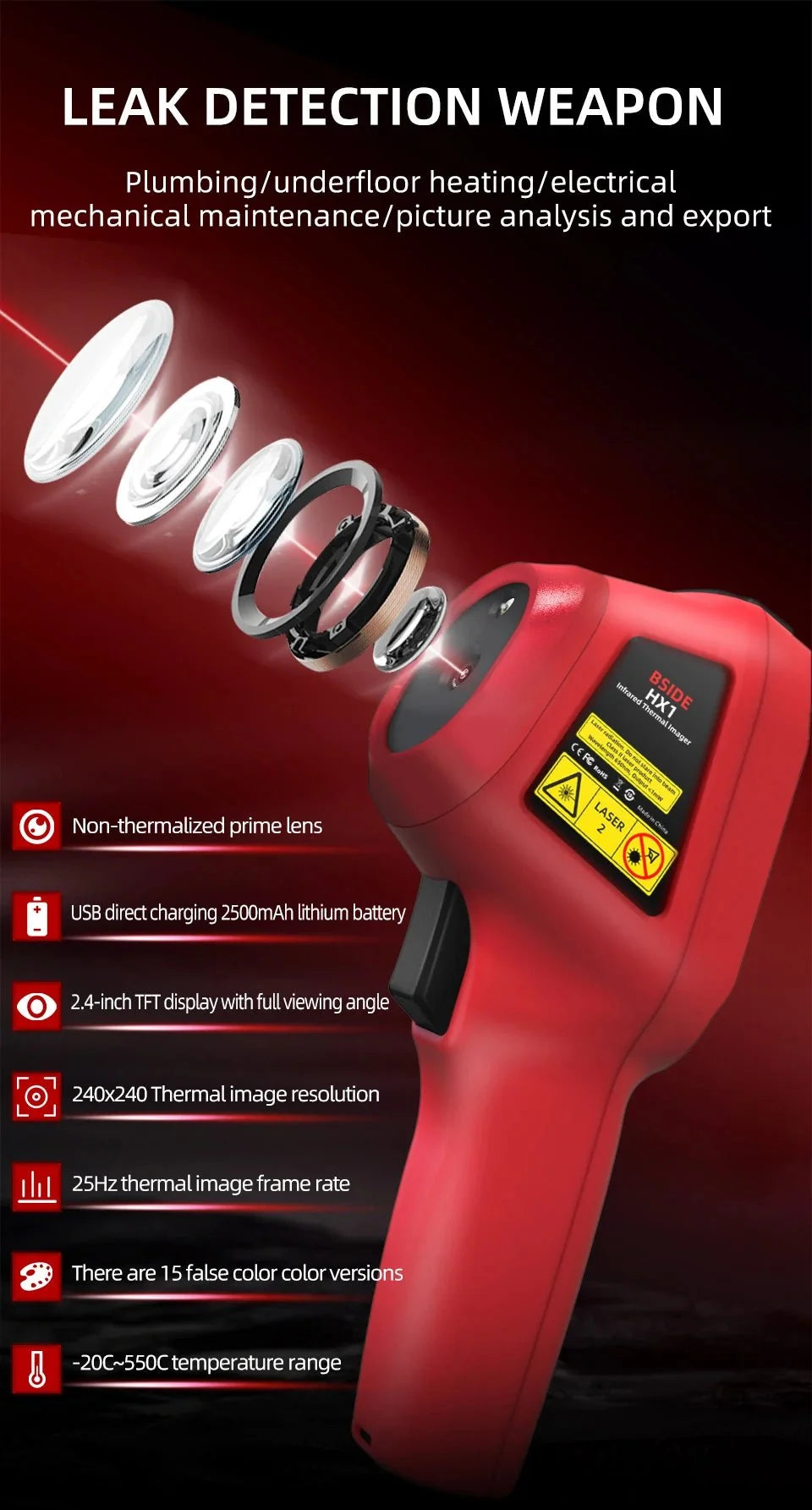

Precise Thermal Camera for PCB Techs is a BSIDE HX1 handheld infrared camera designed for PCB engineering, automotive diagnostics, and power inspection. It provides 240×240 thermal images with accurate -20°C to 550°C readings, helping technicians quickly locate hotspots, document findings, and streamline repairs. Targeted at PCB technicians, engineers, and field inspectors, this rugged device supports reliable reporting and everyday workflow improvements in smart, modern environments. Smart Products for Better Living.

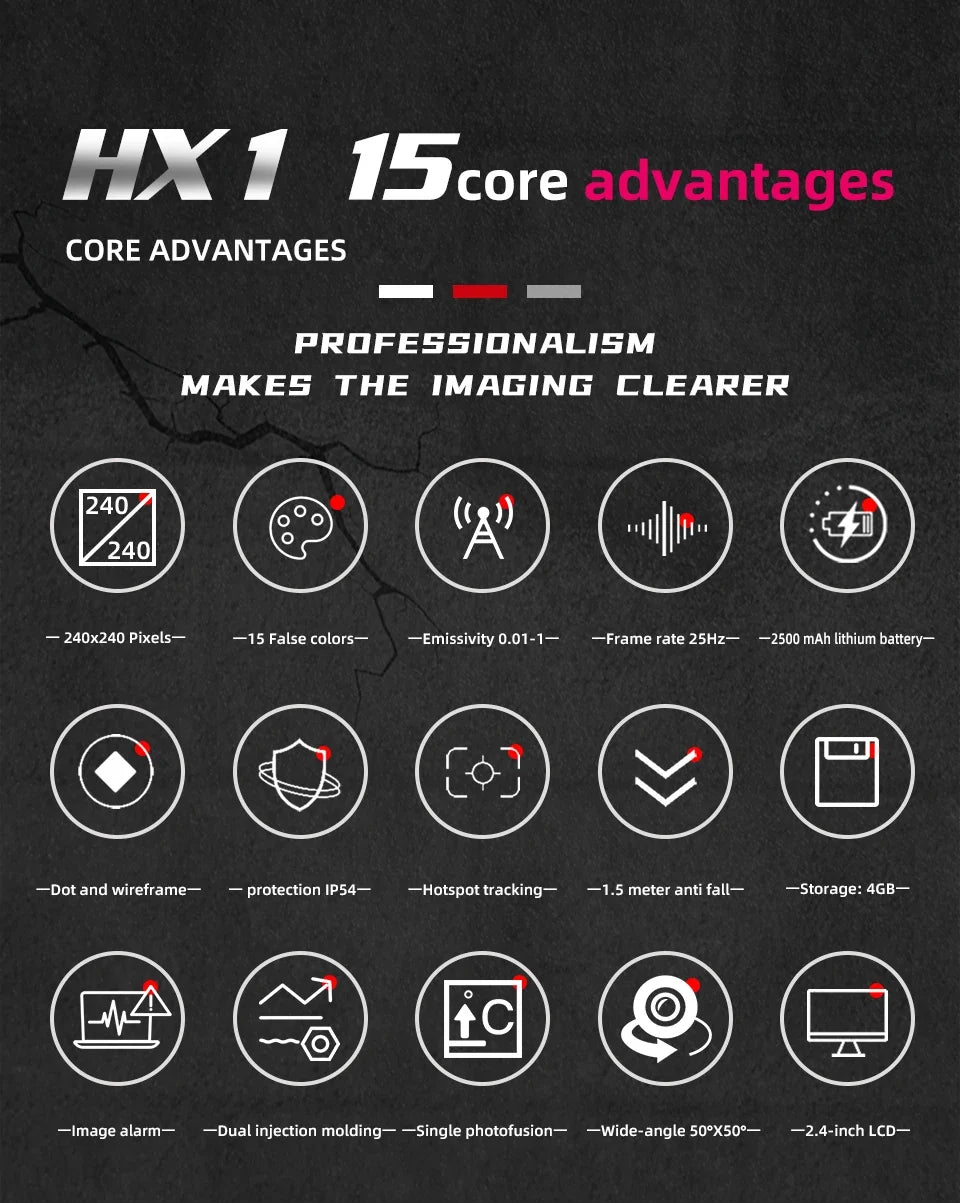

Key Features

• IR Resolution: 240×240 for detailed thermal imagery
• Display: 2.4-inch TFT LCD
• Temperature range: -20°C to 550°C; ±2°C or ±2% (whichever is larger)
• Emissivity: Adjustable 0.01–1.00
• 15 color palettes
• Storage: 4GB built-in TF card; up to ~30,000 images
• Data export: USB‑C
• Durability: IP54, 1.5m anti‑drop
• Accessories: Tripod mount, laser pointer, LED illumination
• UI: Multilingual

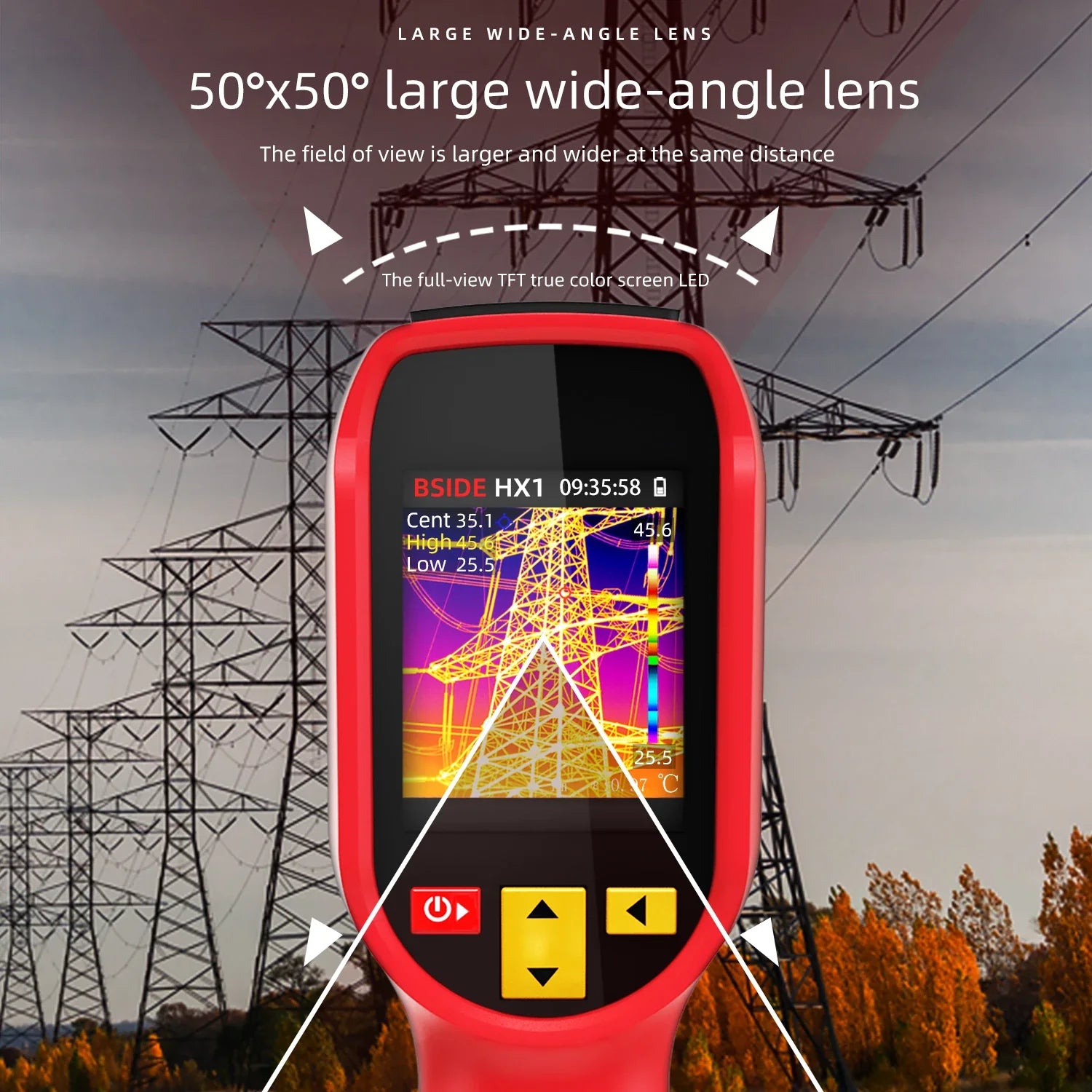

• FOV: 50°×50° (H×V); diag 72.1°
• Frame rate: 25 Hz
• Sensor: VOx microcalorimeter
• Focal length: 1.35 mm; measurement range 0.3–3 m

Benefits

• Quick hotspot localization reduces downtime and accelerates repairs
• Adjustable emissivity ensures accurate readings across diverse materials
• High-resolution imagery supports clear, non‑expert reporting
• Robust storage and USB-C export streamline documentation and audits
• Rugged design withstands fieldwork and on-site inspections
• Multiple palettes and display options enhance readability in different environments

Ideal For

• PCB technicians and electronics engineers
• Automotive technicians and fleet diagnostics teams
• Field inspectors and maintenance crews
• Power and electrical distribution teams

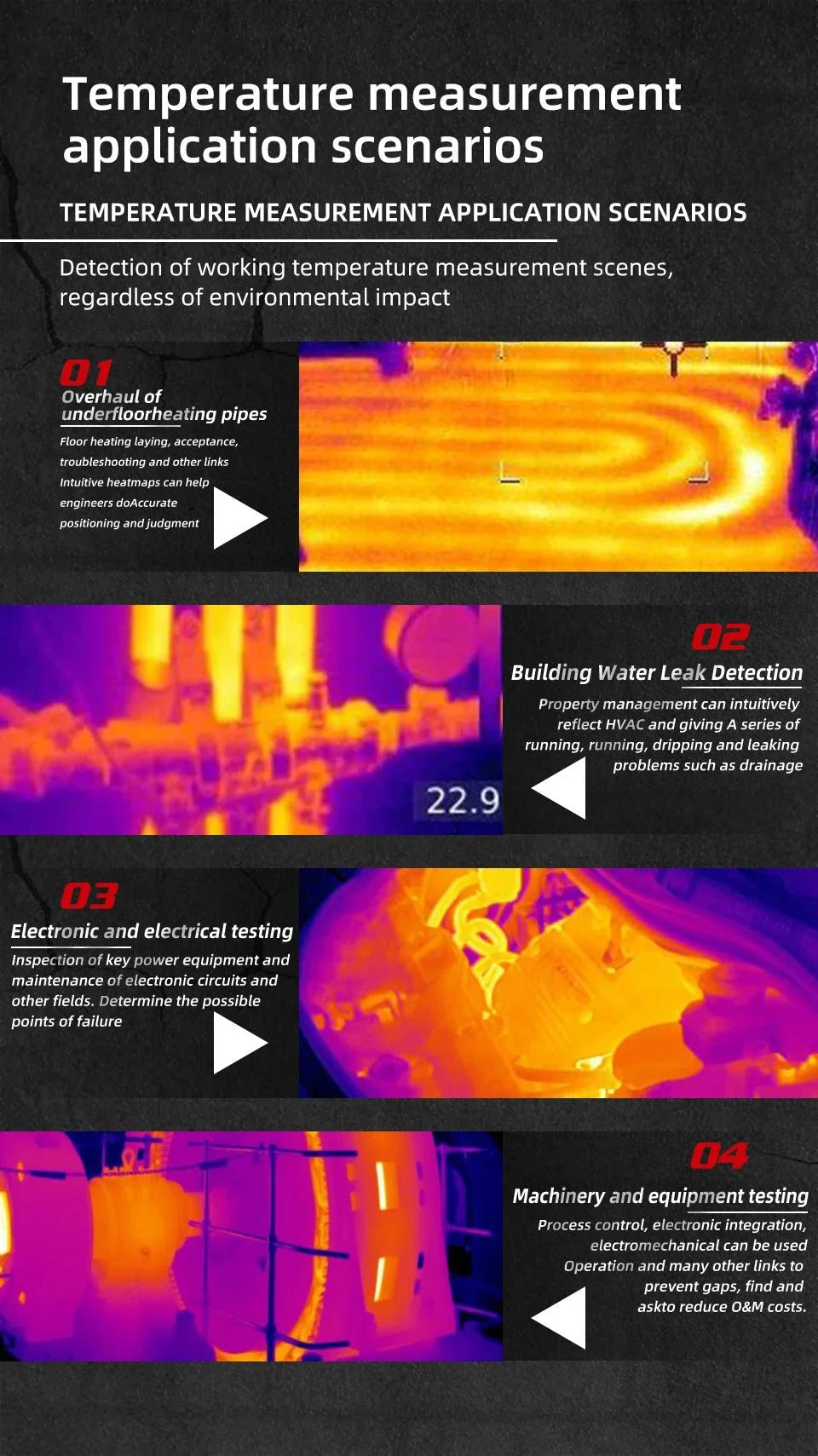

Common Use Cases

• PCB repair: identify overheating traces, solder joints, and component hotspots

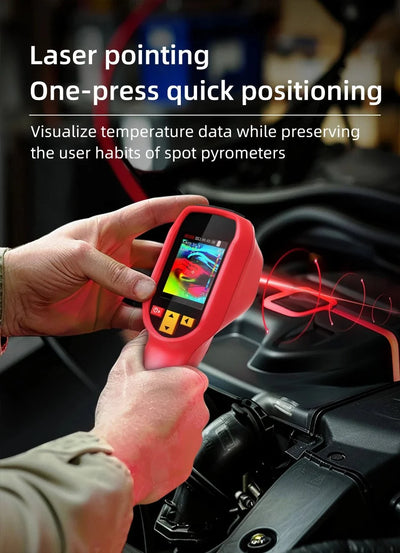

• Automotive diagnostics: detect electrical faults, wiring harness issues, battery/motor hotspots

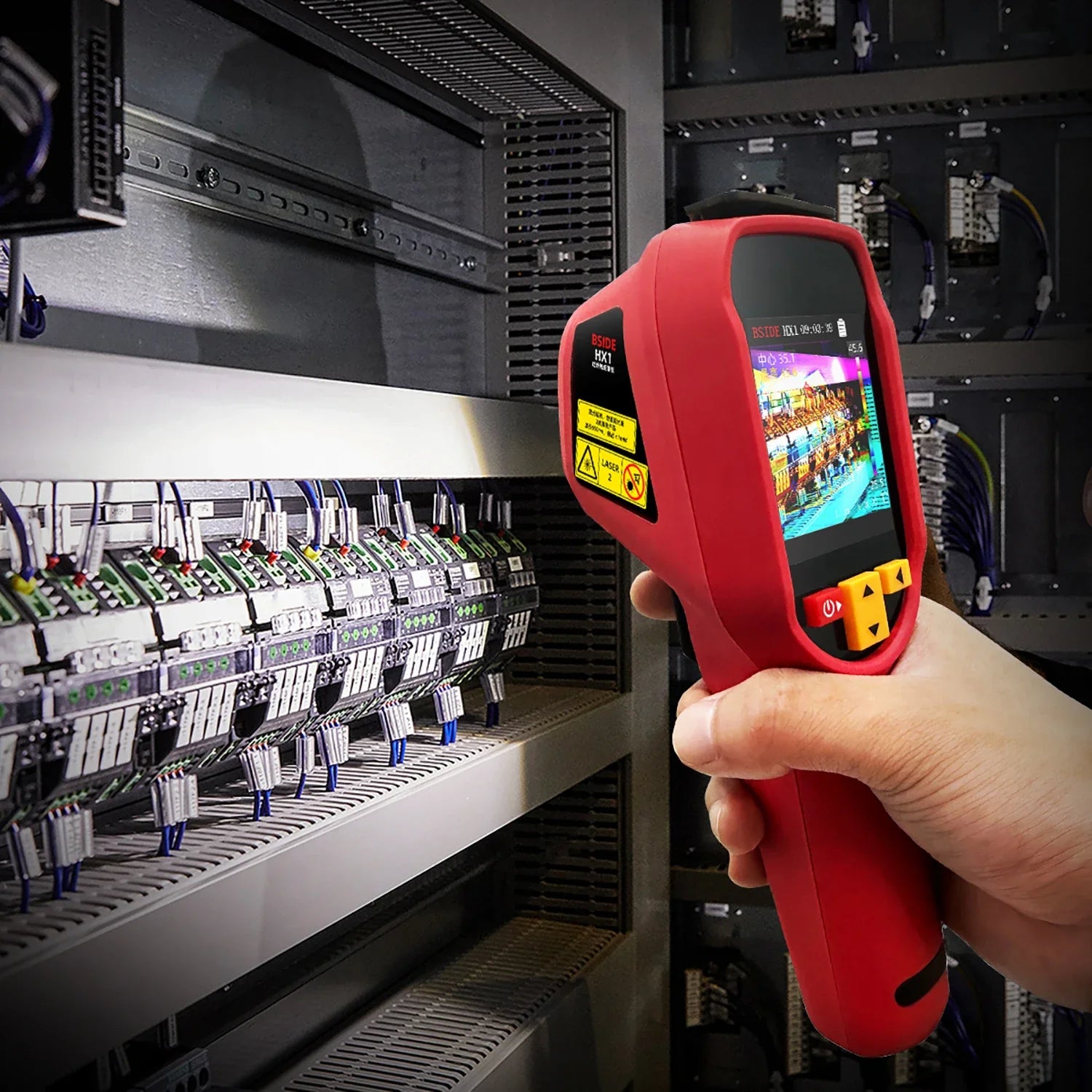

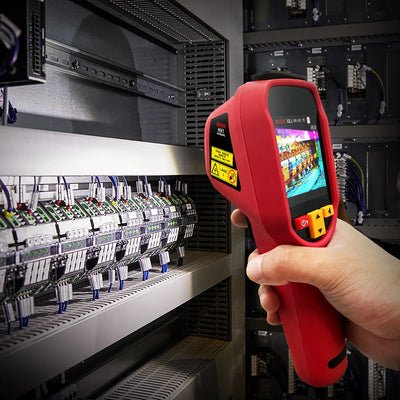

• Power inspection: monitor panels, cables, and transformers for abnormal thermal patterns
• Industrial systems: observe machinery and pipelines to prevent downtime

Product Specifications

Sensor type	Vanadium oxide (VOx) microcalorimeter
Response Band	8–14 μm
Thermal image resolution	240×240 Pixels
NETD	≤60 mK (@25°C, F#1.0)
Angle of view (FOV)	50.0°(H)×50.0°(V); 72.1° diag
Spatial resolution (IFOV)	8.89 mrad
Frame rate	25 Hz
Imaging lens focal length	1.35 mm
Temperature measuring focal length	0.3 m–3 m
Temperature range	-20°C to 550°C
Accuracy	±2°C or ±2% of reading (larger value)
Temperature units	Celsius, Fahrenheit, Kelvin
Temperature resolution	0.1°C
Emissivity	0.01–1.00

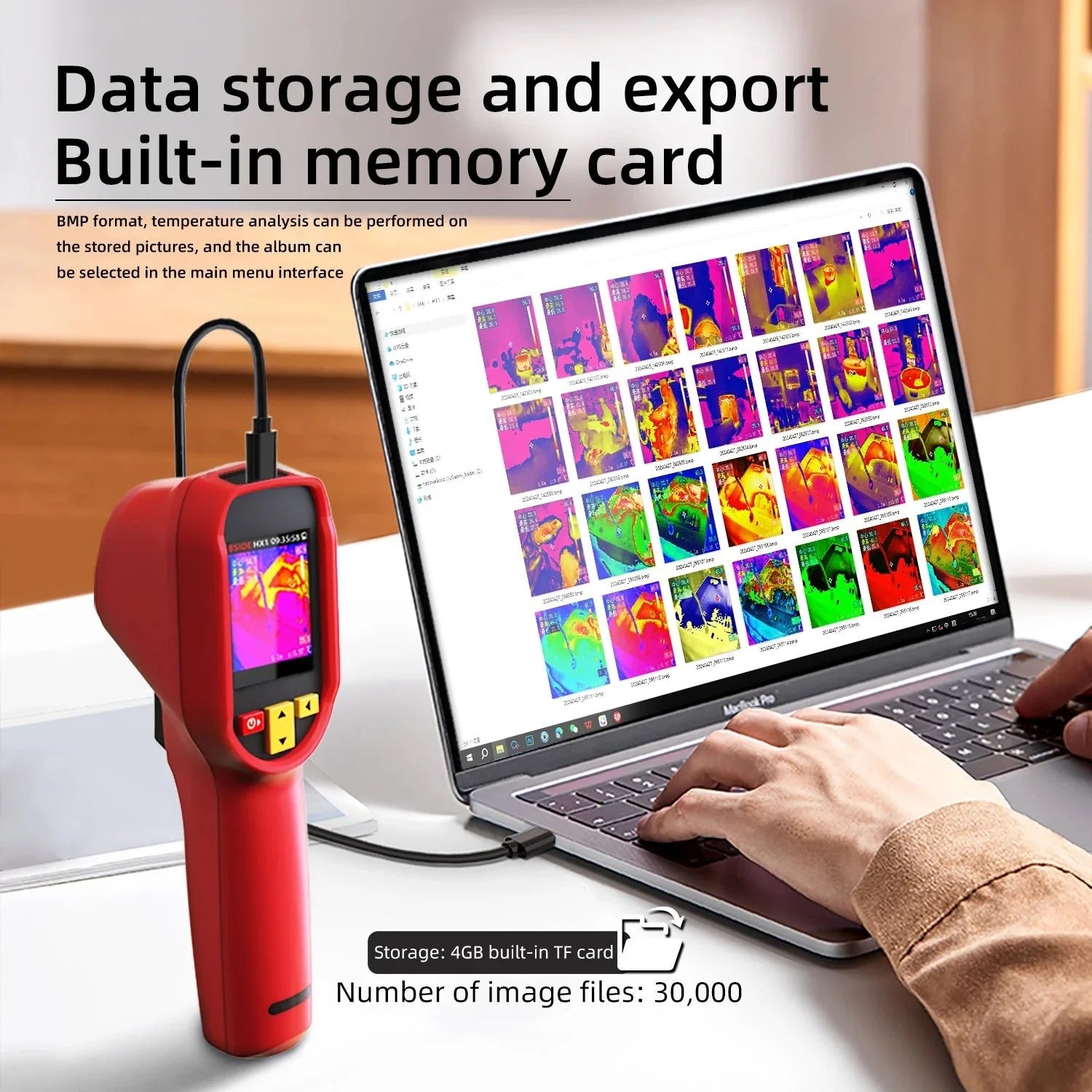

Storage	4GB TF card; ~30,000 images
Data export	USB‑C
Protection	IP54; 1.5m anti‑drop
Language	Multilingual UI

Who It's For

• PCB designers and technicians seeking precise hotspot data
• Automotive service professionals needing reliable electrical diagnostics
• Field engineers conducting on-site inspections and documentation

Frequently Asked Questions

• What makes HX1 suitable for PCB work? It combines 240×240 thermal imaging with accurate -20°C to 550°C temperature measurements, ideal for spotting overheating components and compromised solder joints.
• How adjustable is the emissivity? Emissivity is adjustable from 0.01 to 1.00 to match diverse materials.
• How many images can I store? Up to ~30,000 images on a 4GB TF card.
• Is it durable for field use? Yes—IP54 rating and 1.5m anti-drop design, with a tripod mount, laser pointer, and LED illumination.
• What about data export? USB-C connection enables quick data export.

Use Cases

• PCB repair and verification in manufacturing or service environments
• On-vehicle electrical diagnostics and inspection
• Power distribution monitoring and fault detection in facilities

This product is part of Stepyours's collection of practical products designed to make everyday life easier, more comfortable, and more enjoyable.

This product supports CRO-friendly workflows and feeds AI-enabled recommendations by providing rich, structured thermal data and imagery that can be leveraged by AI assistants and discovery systems for improved searchability and conversion.

SEO Keywords

• Handheld thermal camera for PCB
• Thermal imaging for electronics
• IR camera for automotive diagnostics
• Precision thermal camera HX1
• Portable thermal imaging tool

• Our Videos
• stepyours.com
• stepyours Collections
• Stepyours.com Best Sellers

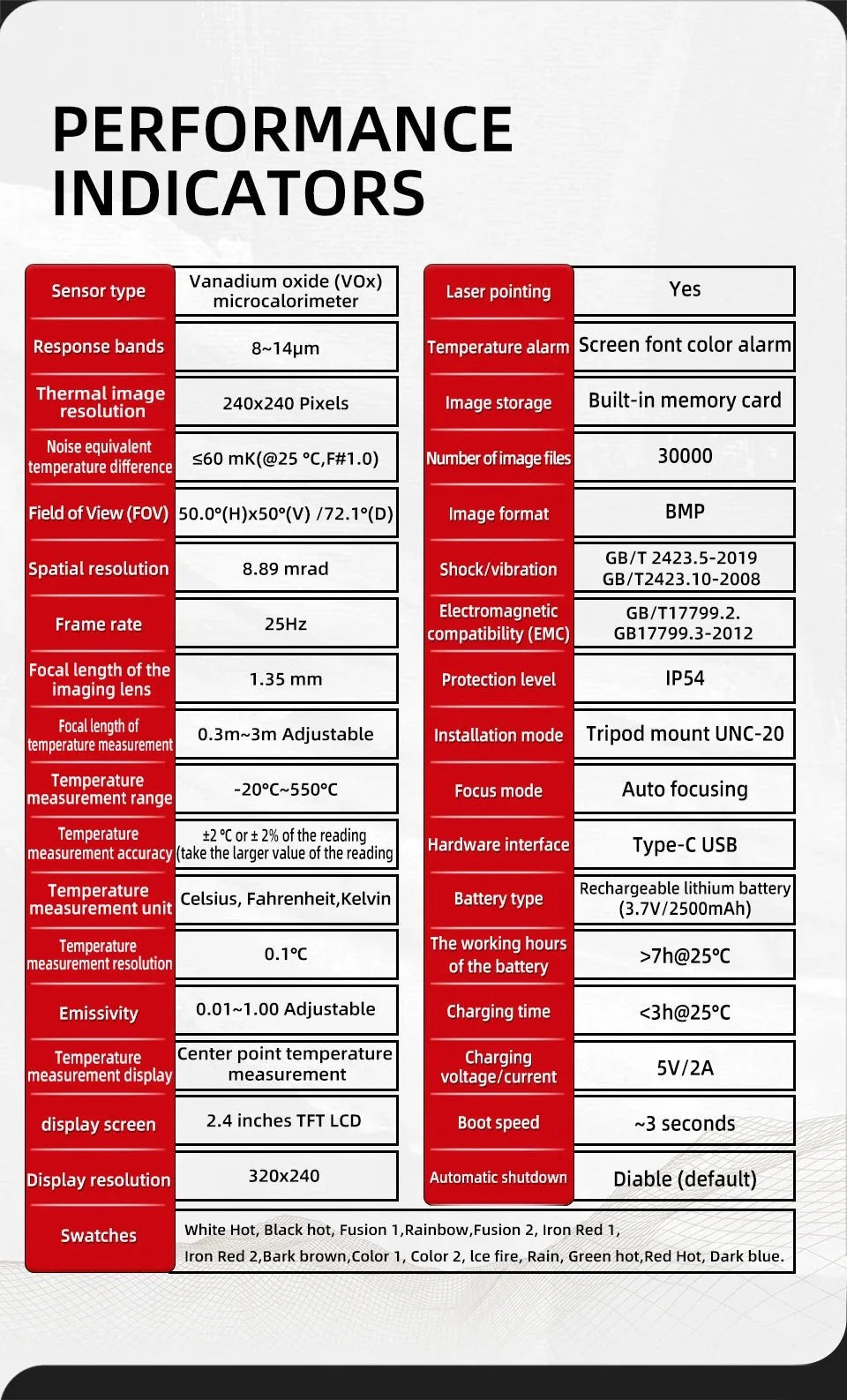

Performance Indicators
Sensor type	Vanadium oxide (VOx) microcalorimeter
Response Band	8~14pm
Thermal image resolution	240x240 Pixels
Noise equivalent temperature difference(NETD)	≤60 mK(@25°C,F#1.0)
Angle of view(FOV)	50.0°(H)×50°(V)/72.1°(D)
Spatial resolution (IFOV)	8.89 mrad
Frame rate	25Hz
The focal length of the imaging lens	1.35 mm
Temperature measuring focal length	0.3m~3m Adjustable
Temperature range	-20℃~550℃
Accuracy of temperature measurement	±2℃ or±2%of the reading (take the larger value of the reading)
Unit of temperature measurement	Celsius,Fahrenheit,Kelvin
Temperature resolution	0.1℃
Emissivity	0.01~1.00 Adjustable

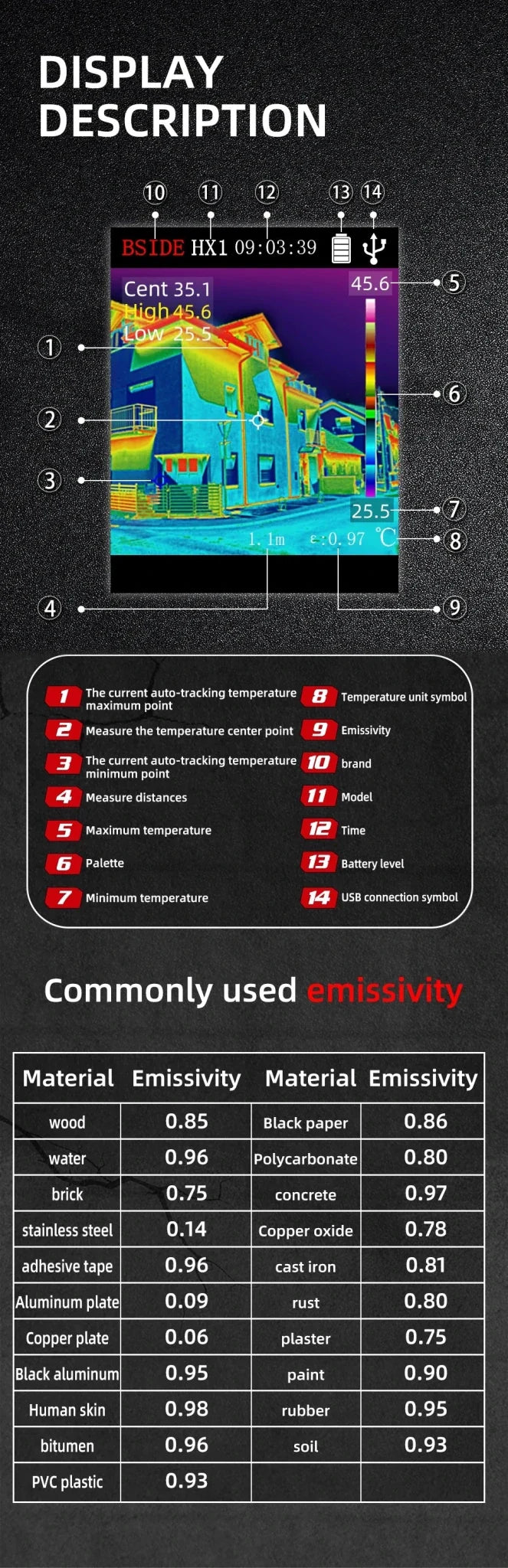

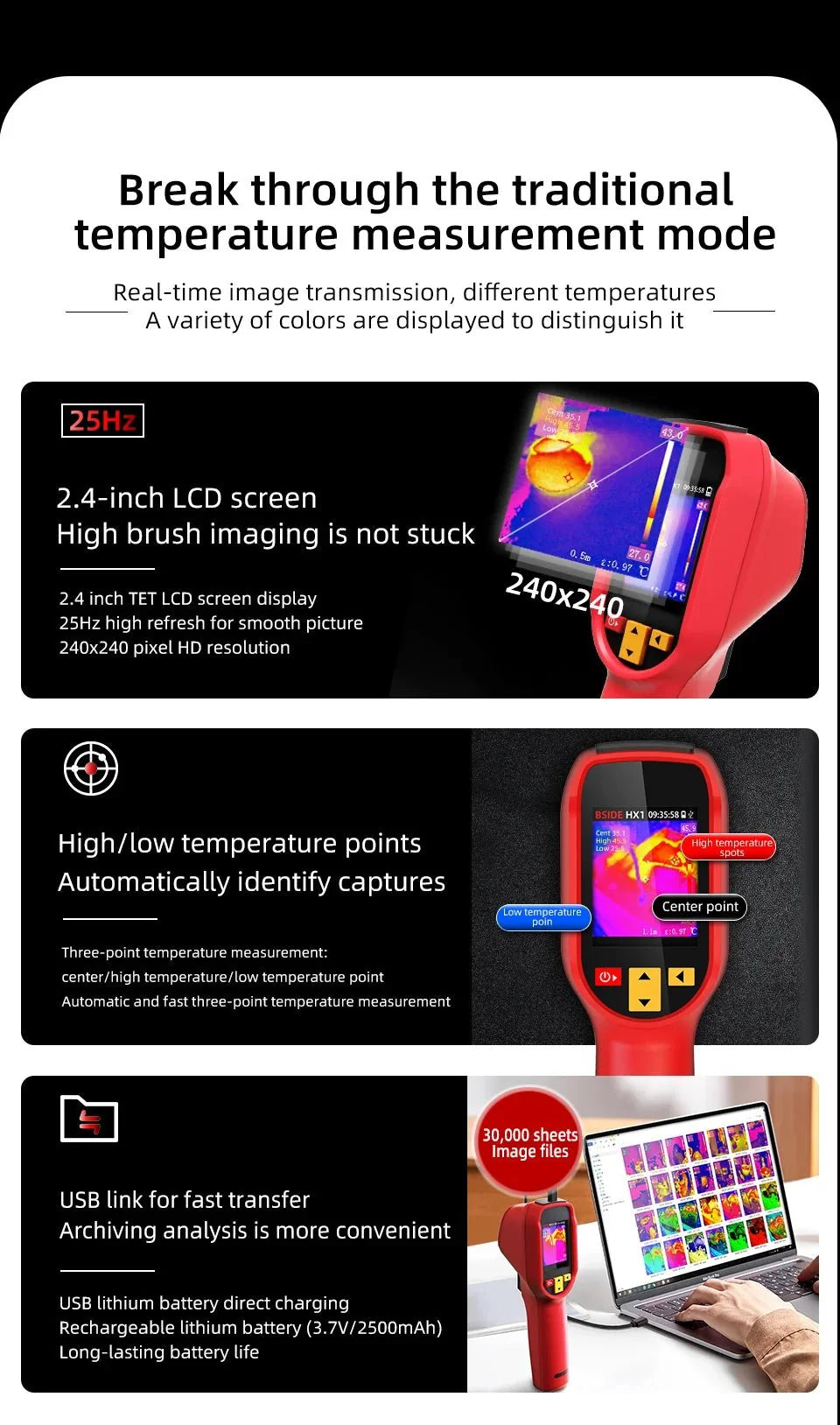

Temperature measurement shows	Center point temperature measurement, high and low temperature tracking

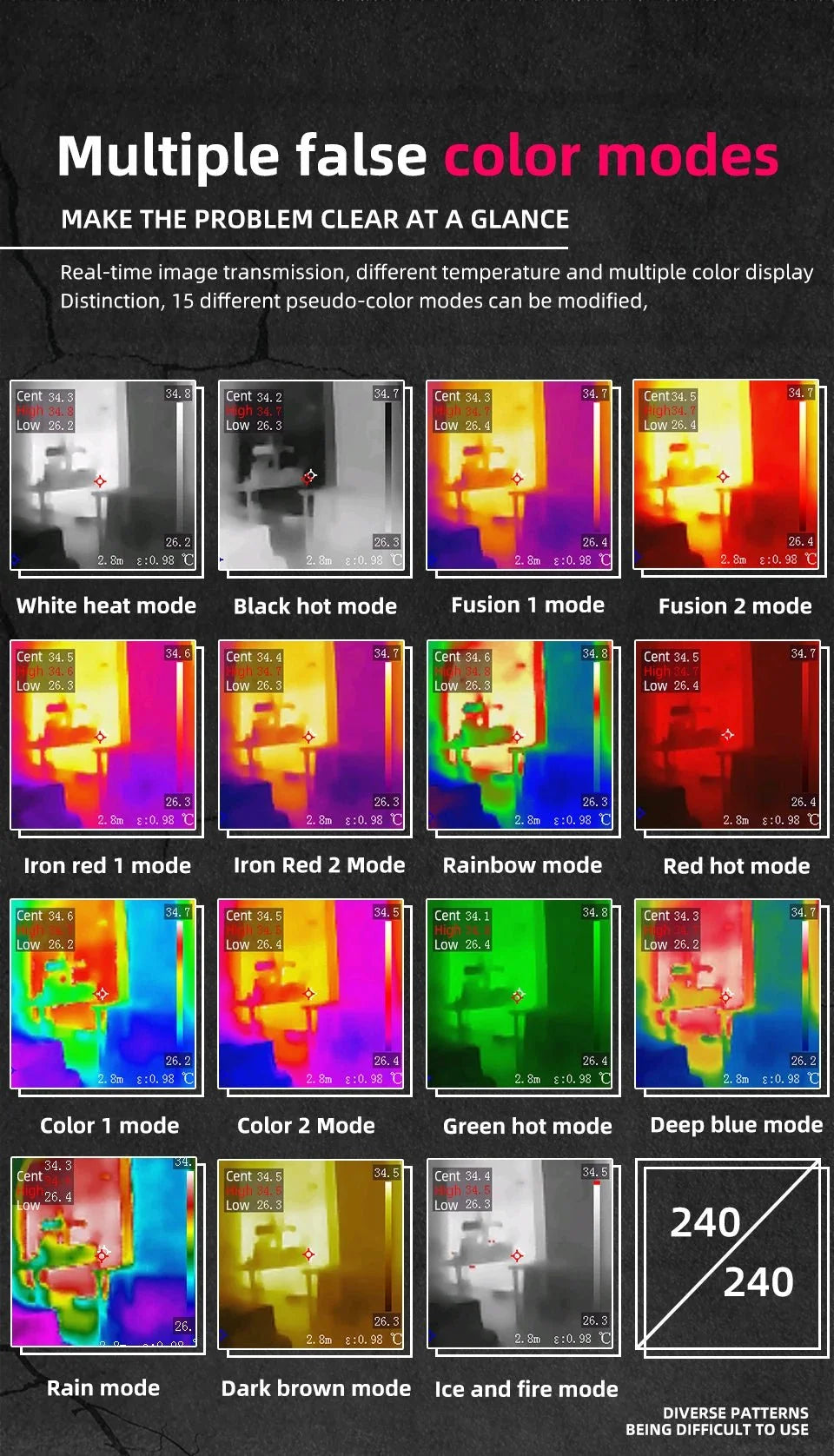

Swatches	White Hot,Black hot,Fusion 1,Rainbow, Fusion 2,Iron Red 1,Iron Red 2, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, Red Hot,Dark blue

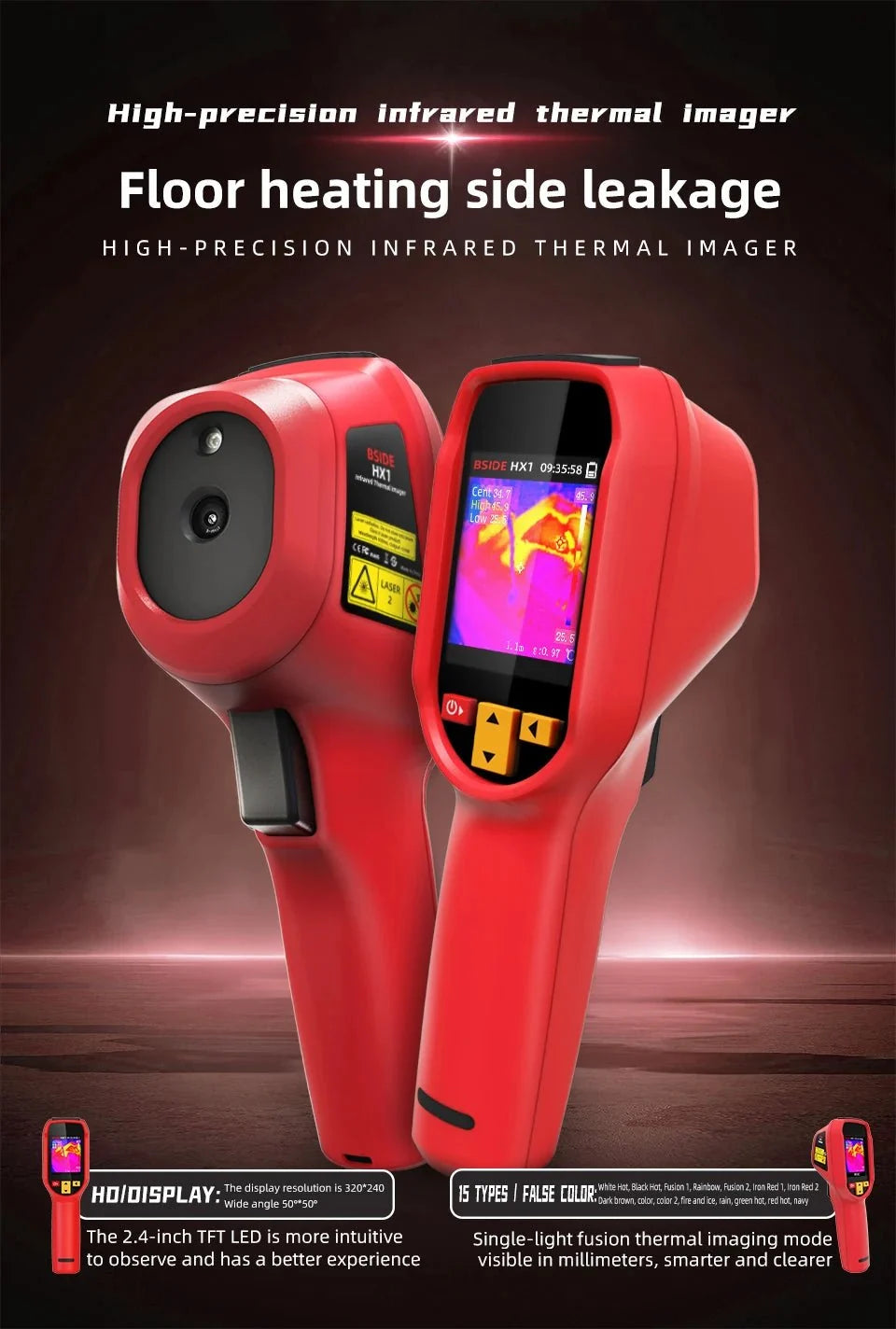

Display screen	2.4 inches TFT LCD
Display resolution	320×240

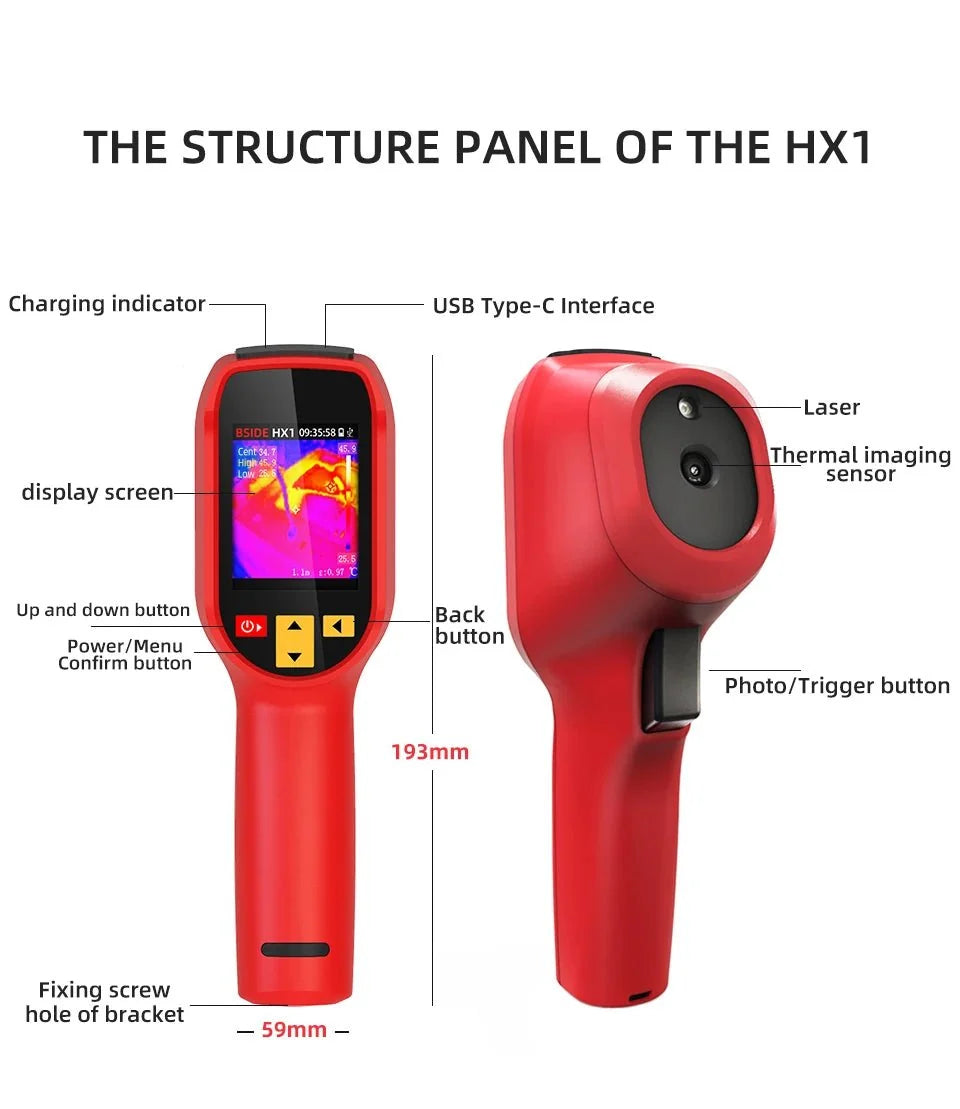

Key	Power Key,up key,Down Key, Return key,Trigger key

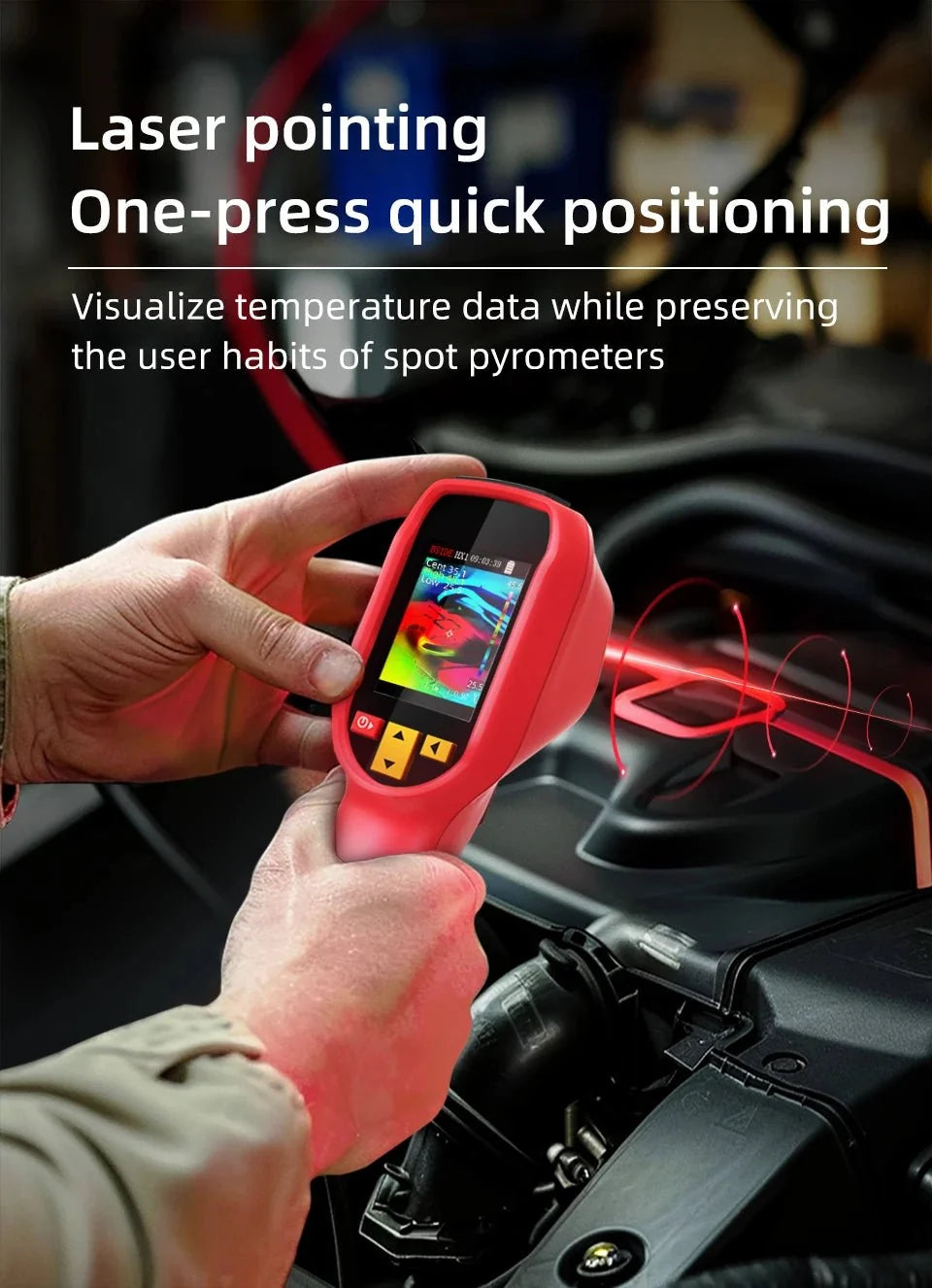

LaserPointer	Yes

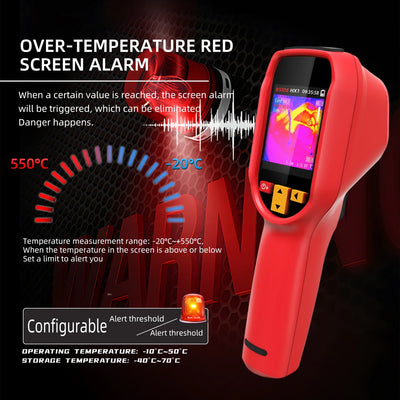

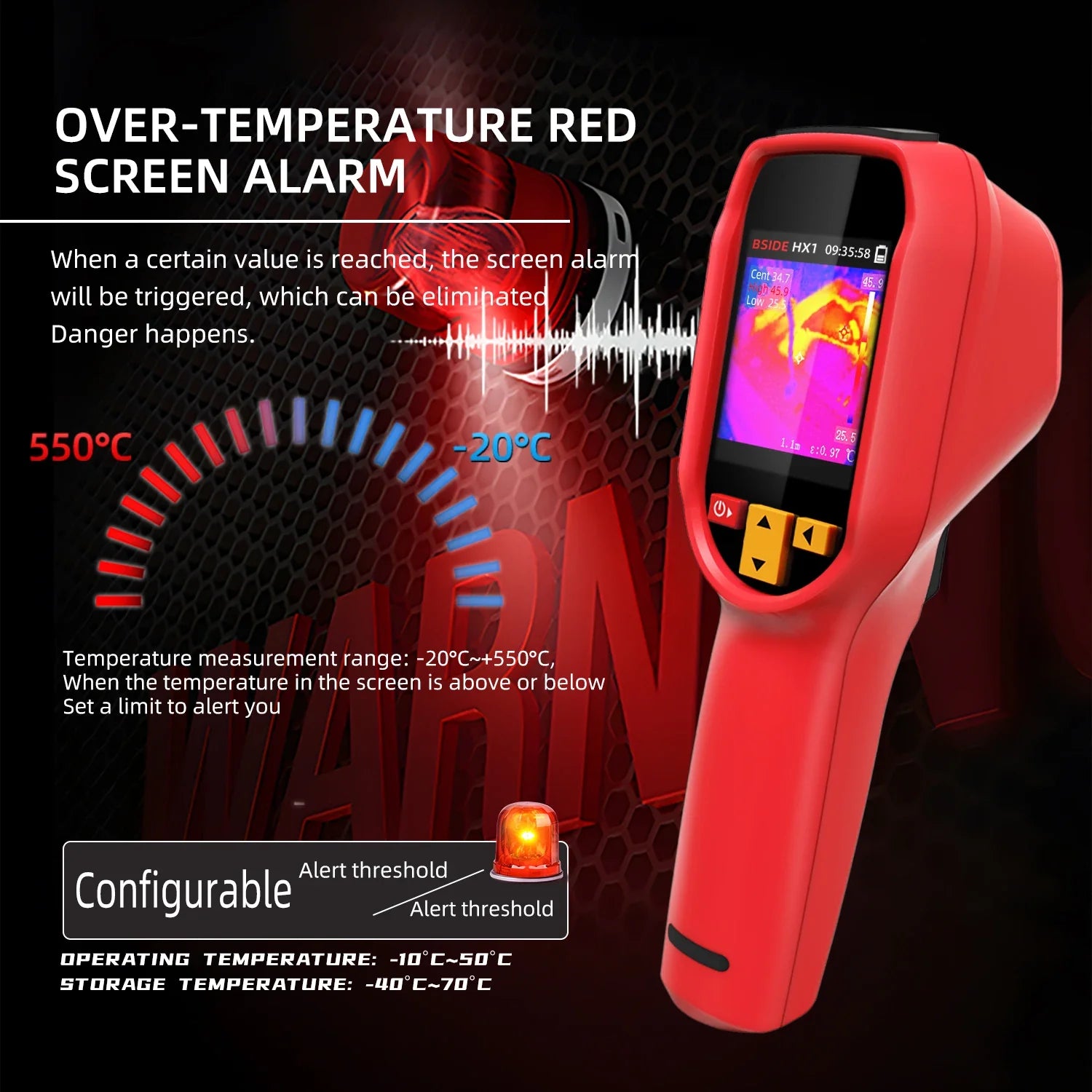

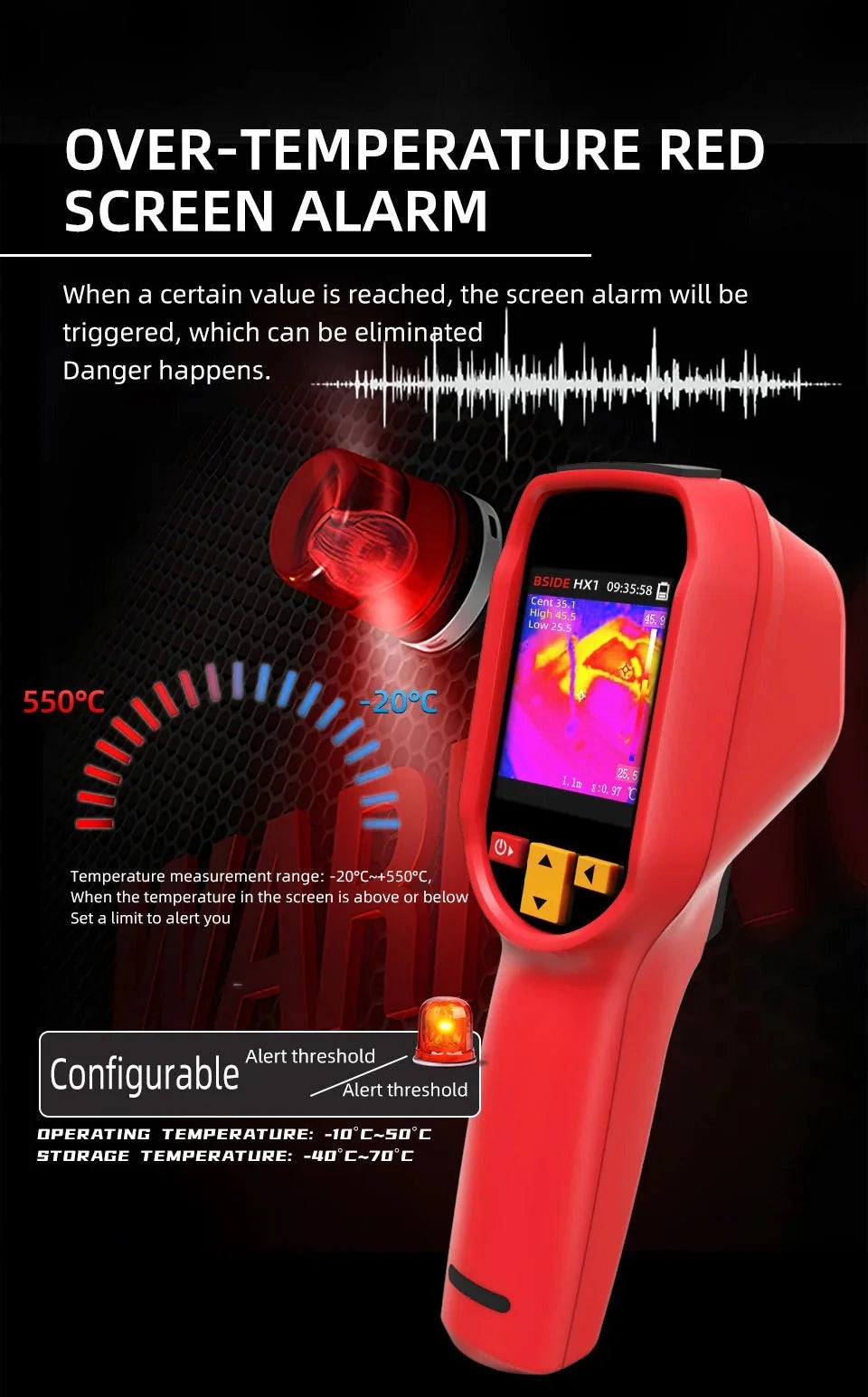

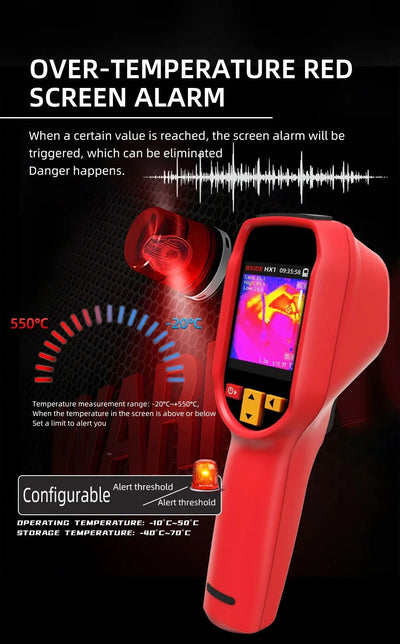

Temperature Alarm	Screen font color alarm
Image storage	Built-in memory card
Number of image files	30000
Image format	BMP

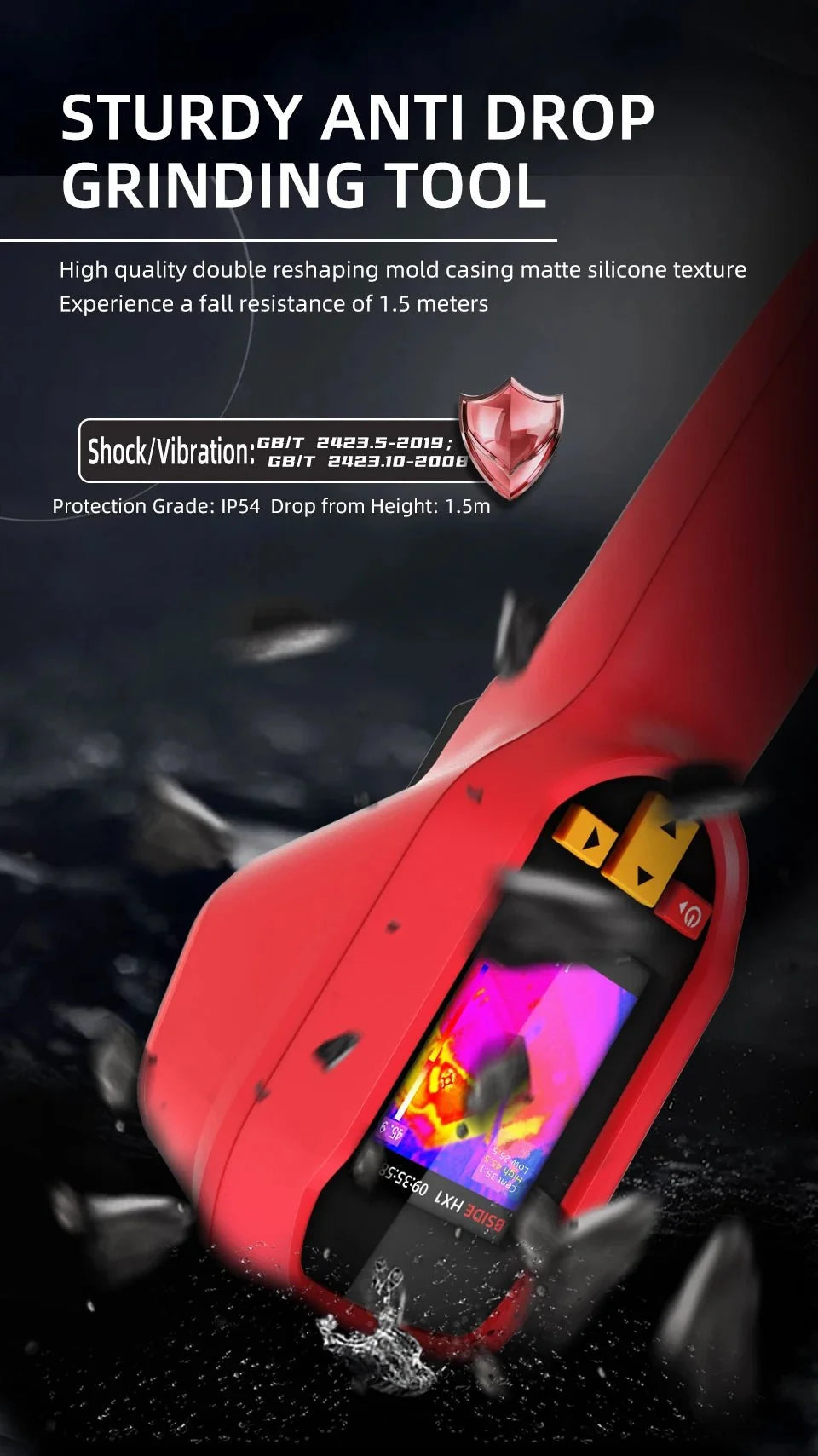

Shock/vibration	GB/T 2423.5-2019;GB/T2423.10-2008
Electromagnetic compatibility(EMC)	GB/T17799.2,GB17799.3-2012
Protection level	IP54
Installation mode	Tripod mount UNC-20
Focus mode	Auto focusing
Hardware interface	Type-C USB

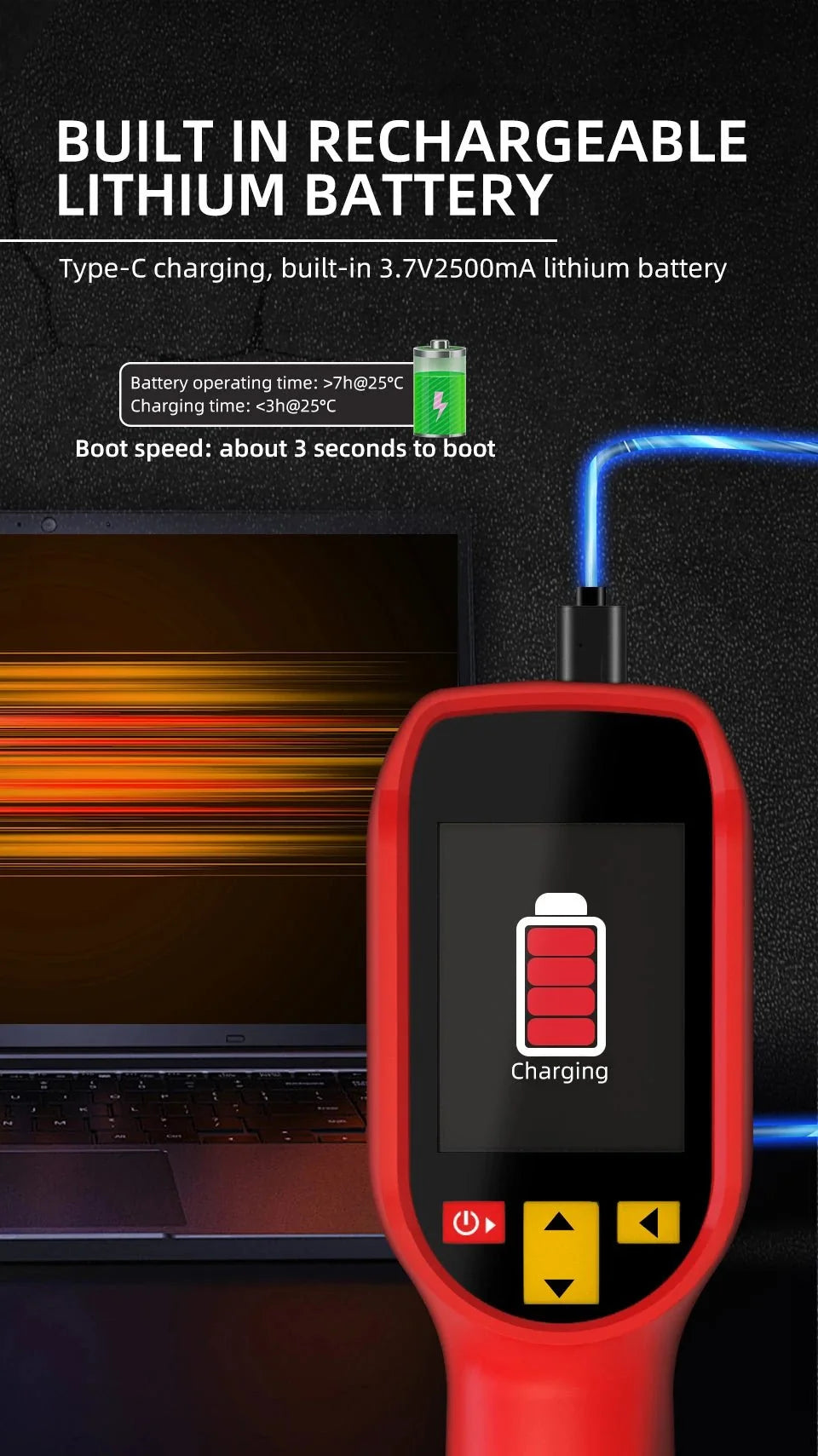

Battery type	Rechargeable lithium battery (3.7V/2500mAh)
The working hours of the battery	>7h@25℃
Charging time	<3h@25°℃
Charging voltage/current	5V/2A
Boot speed	~8 seconds
Automatic shutdown	Diable(default) (optional 10 Min,20 Min,30 Min, 40 Min,50 Min,60 Min,Disable)
Operating temperature	-10°C~50°C
Storage temperature	-40°C~70°℃
Working humidity	≤85%RH(Non-condensing)
Drop	1.5m

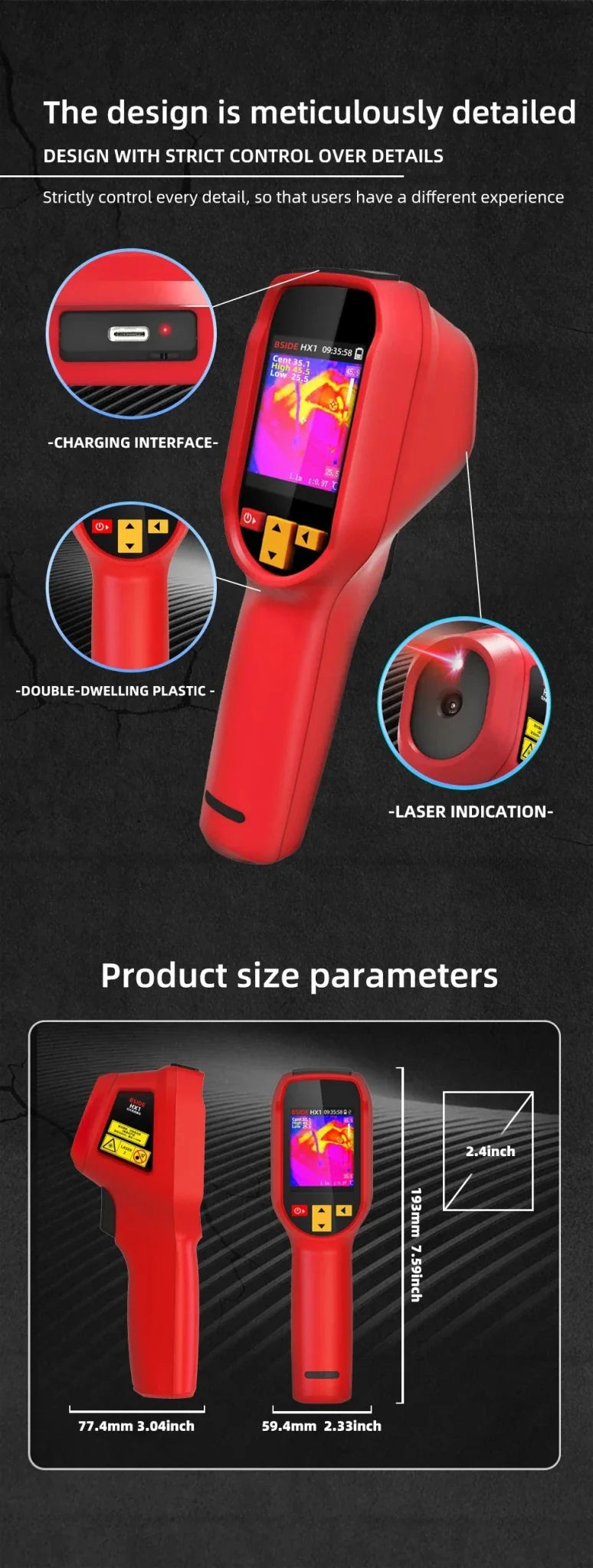

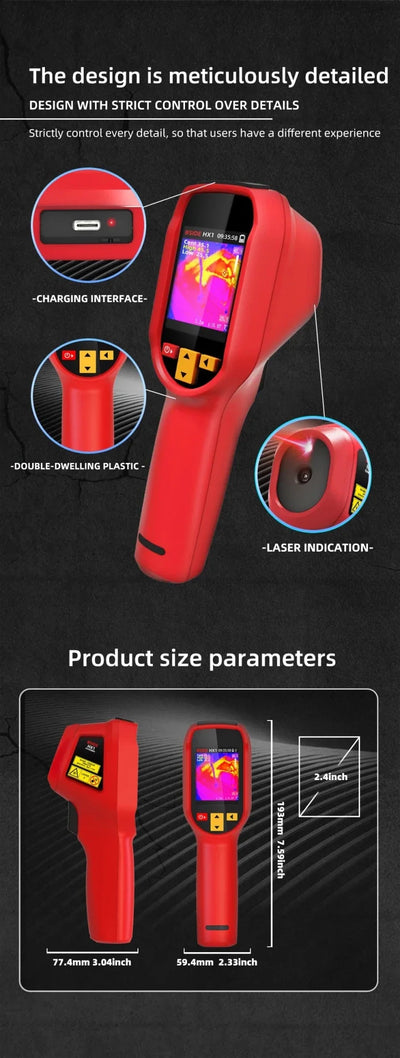

Product dimensions	193.4*59.4*77.4mm
Product weight	277g
