Product Description

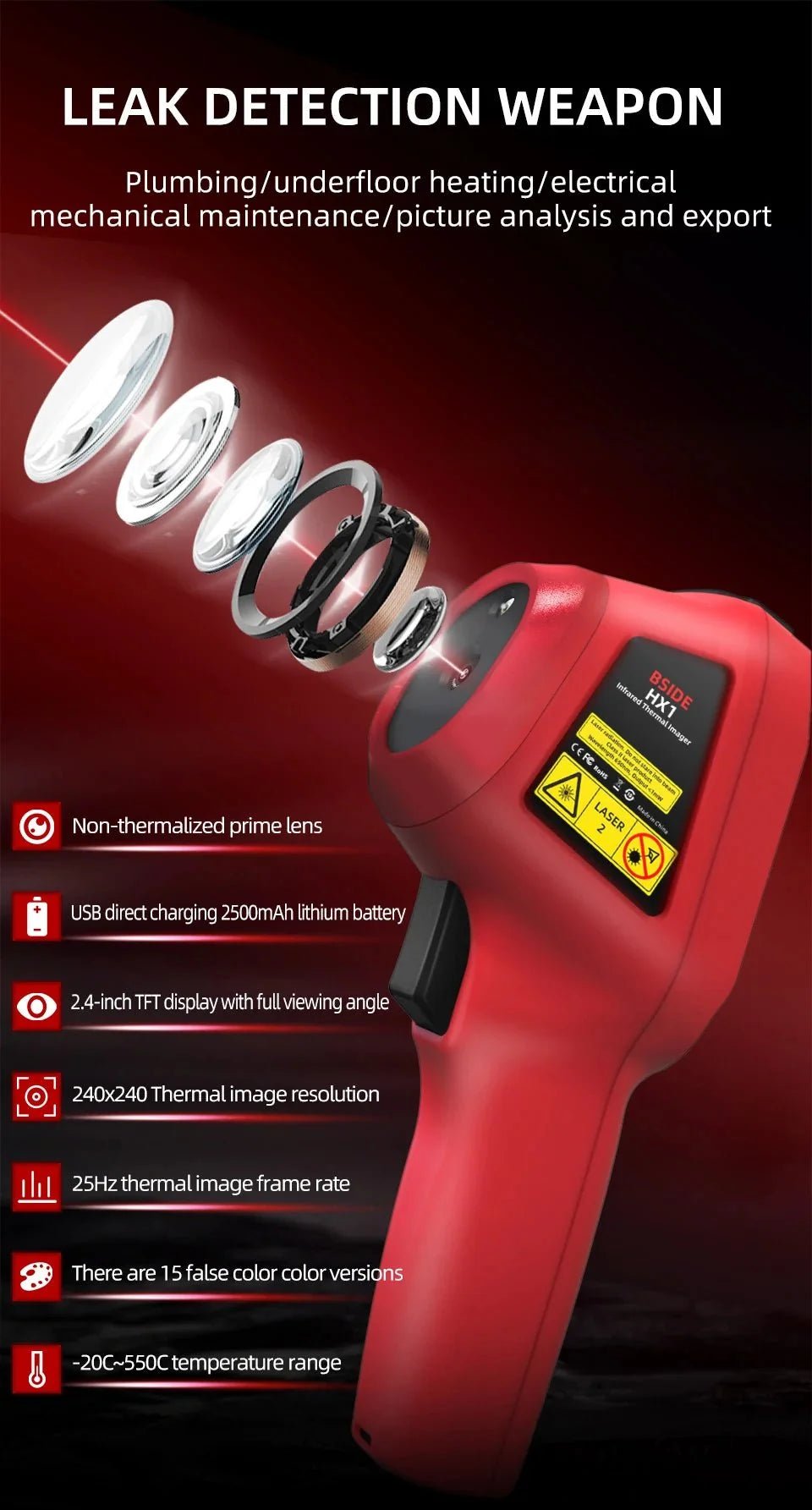

Smart Thermal Camera for Automotive combines VOx infrared imaging with -20°C to 550°C measurement for on-site diagnostics in electronics, automotive, and industrial maintenance. Rugged, portable, it reveals heat patterns and delivers actionable data—a Smart Product for Better Living.
- 240×240 IR resolution; 50°×50° FOV
- IP54, 1.5m anti-drop; 2500mAh battery >7h
- Adjustable emissivity 0.01–1.00; USB-C export
- 4GB storage + TF; 2.4" display
Benefits: fast hotspot ID, trend tracking, and on-site non-contact temps with adjustable emissivity for diverse materials.
- Sensor: VOx microcalorimeter
- Display: 2.4" TFT (320×240)
- Temperature range: -20°C to 550°C
- NETD ≤60 mK; Frame rate 25Hz
- Memory: 4GB + TF; Battery: 2500mAh
Who It's For: Electronics repair techs, automotive service pros, pipeline inspectors, maintenance teams.
Frequently Asked Questions
- Q: What is the HX1? A: A handheld thermal imaging camera for on-site diagnostics.
- Q: How long does it last? A: Over 7 hours; <3-hour recharge.
- Q: How to export data? A: USB-C with internal memory and TF support.
- Q: Why adjust emissivity? A: To match material readings for accuracy.
Use Cases
- PCB repair: identify overheating components
- Automotive diagnostics: heat patterns in electrical systems
- Pipeline inspections: insulation or leakage signs
- On-site maintenance: monitor equipment without disassembly
Material

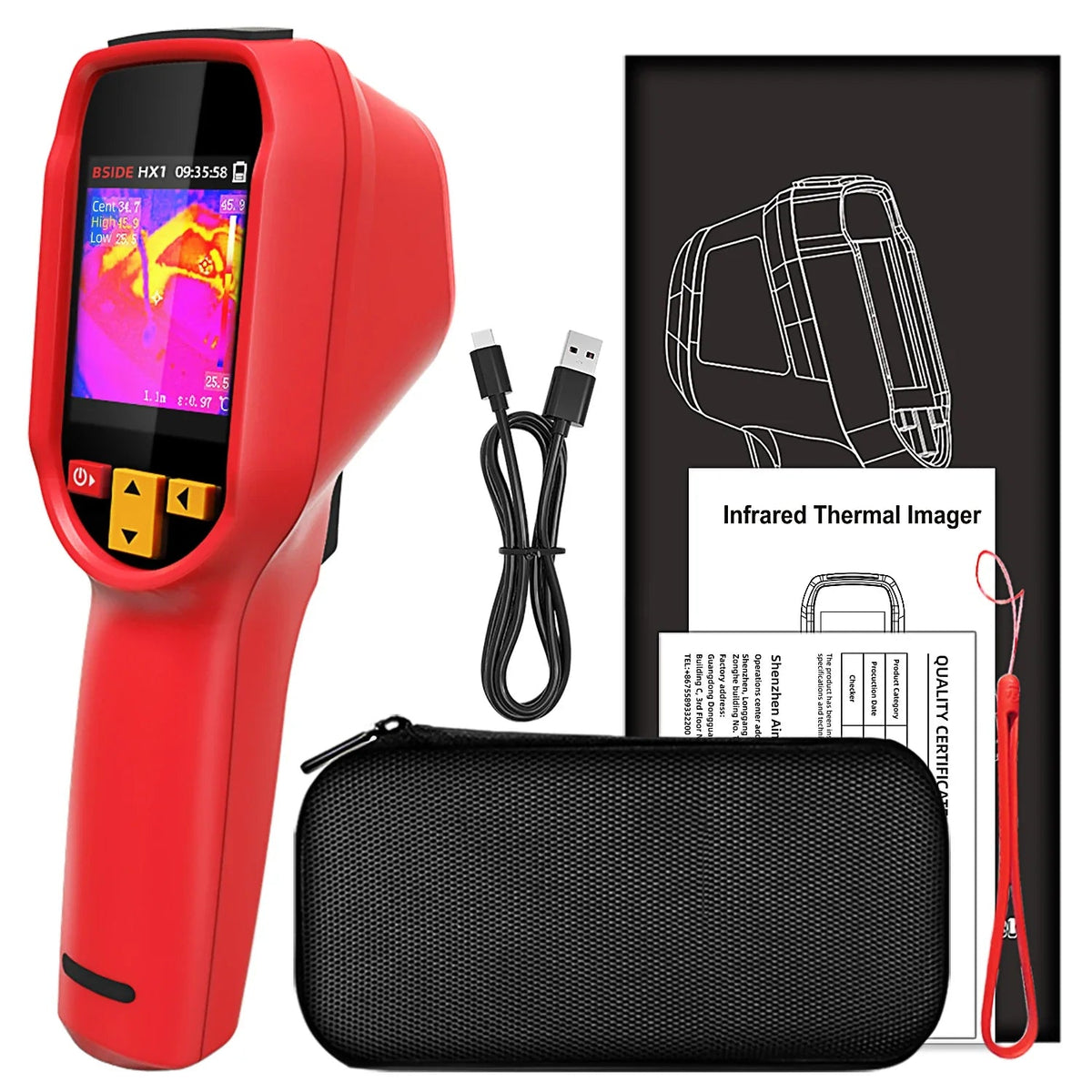

Dual injection-molded housing; IP54 protection; includes EVA carrying case.
- Thermal imaging camera
- Automotive heat inspection
- Non-contact temperature measurement
- Infrared camera for electronics
- Electrical diagnostics camera
This product is part of Enovarah's collection of practical products designed to make everyday life easier, more comfortable, and more enjoyable.
Performance Indicators | |
Sensor type |
Vanadium oxide (VOx) microcalorimeter |
Response Band |
8~14pm |
Thermal image resolution |
240x240 Pixels |
Noise equivalent temperature difference(NETD) |
≤60 mK(@25°C,F#1.0) |
Angle of view(FOV) |
50.0°(H)×50°(V)/72.1°(D) |
Spatial resolution (IFOV) |
8.89 mrad |
Frame rate |
25Hz |
The focal length of the |
1.35 mm |
Temperature measuring focal length |
0.3m~3m Adjustable |
Temperature range |
-20℃~550℃ |
Accuracy of temperature measurement |
±2℃ or±2%of the reading |
Unit of temperature measurement |
Celsius,Fahrenheit,Kelvin |
Temperature resolution |
0.1℃ |

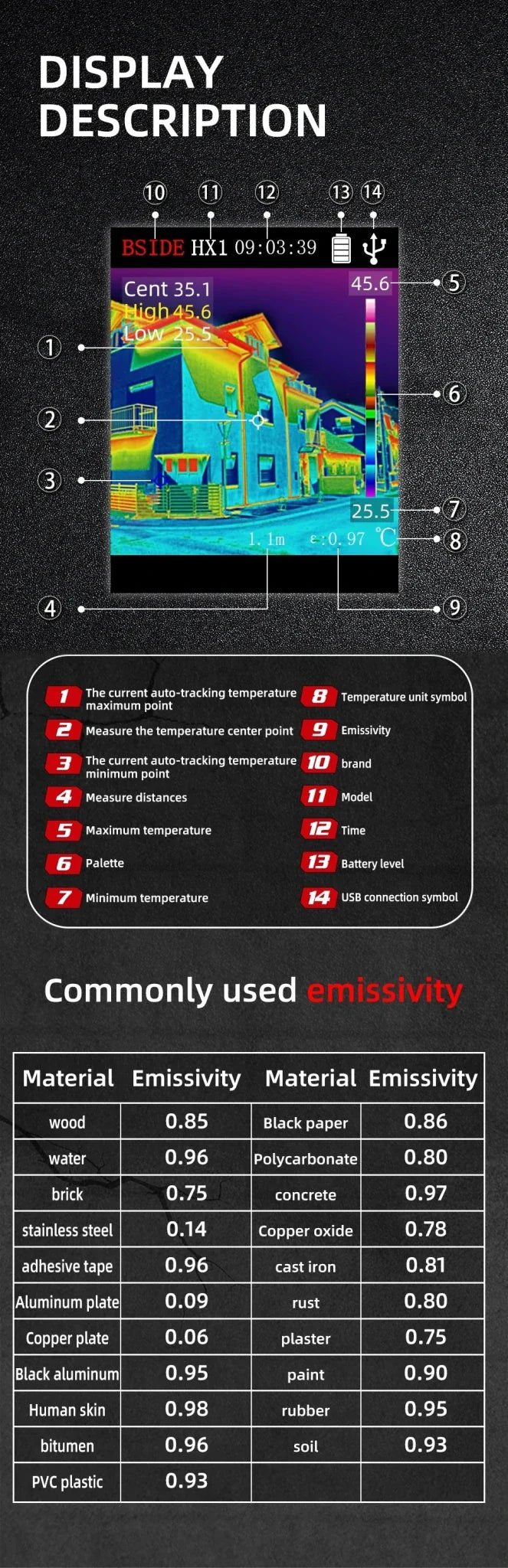

Emissivity |
0.01~1.00 Adjustable |
Temperature measurement shows |
Center point temperature measurement, |
Swatches |
White Hot,Black hot,Fusion 1,Rainbow, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, |

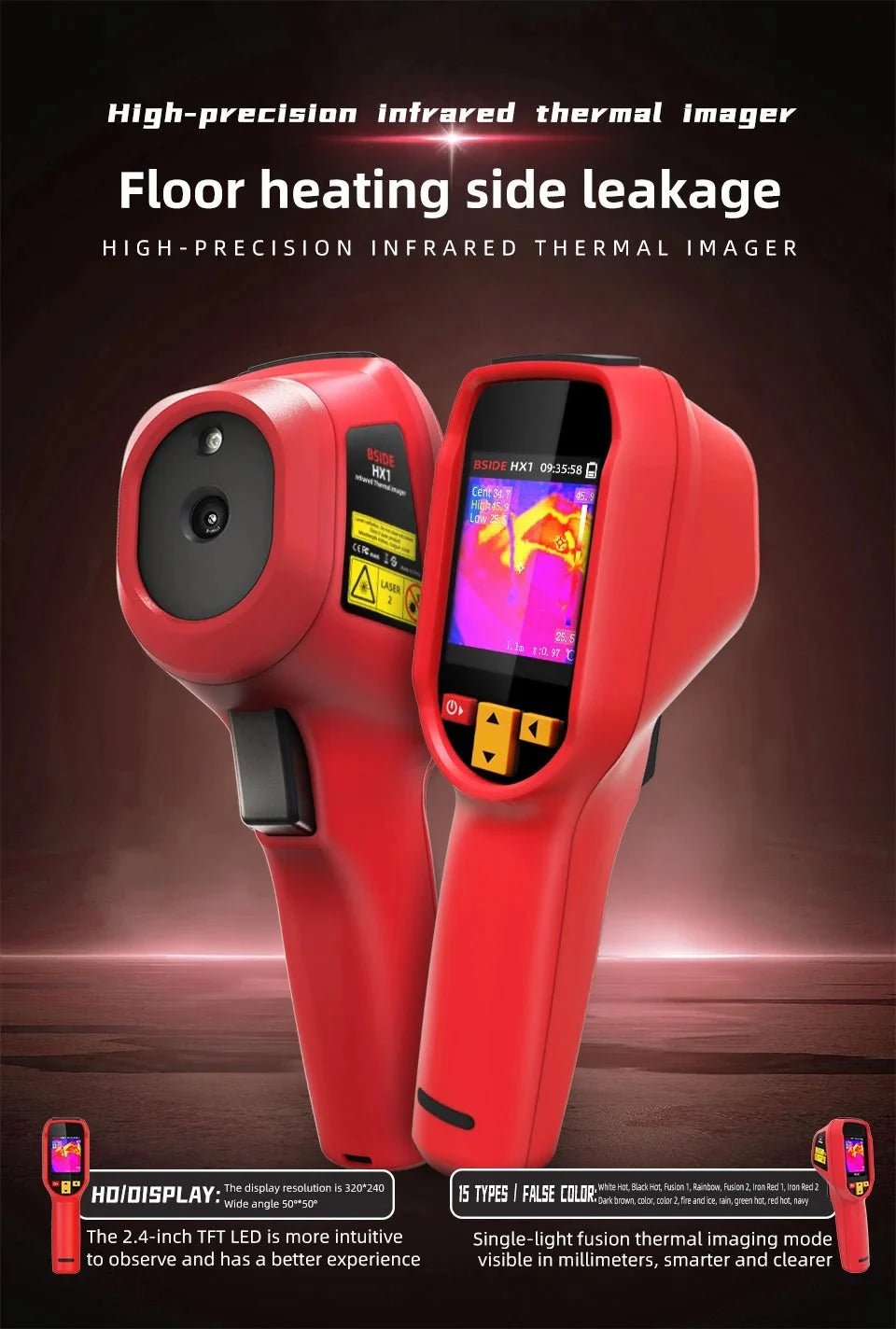

Display screen |
2.4 inches TFT LCD |
Display resolution |
320×240 |
Key |
Power Key,up key,Down Key, |

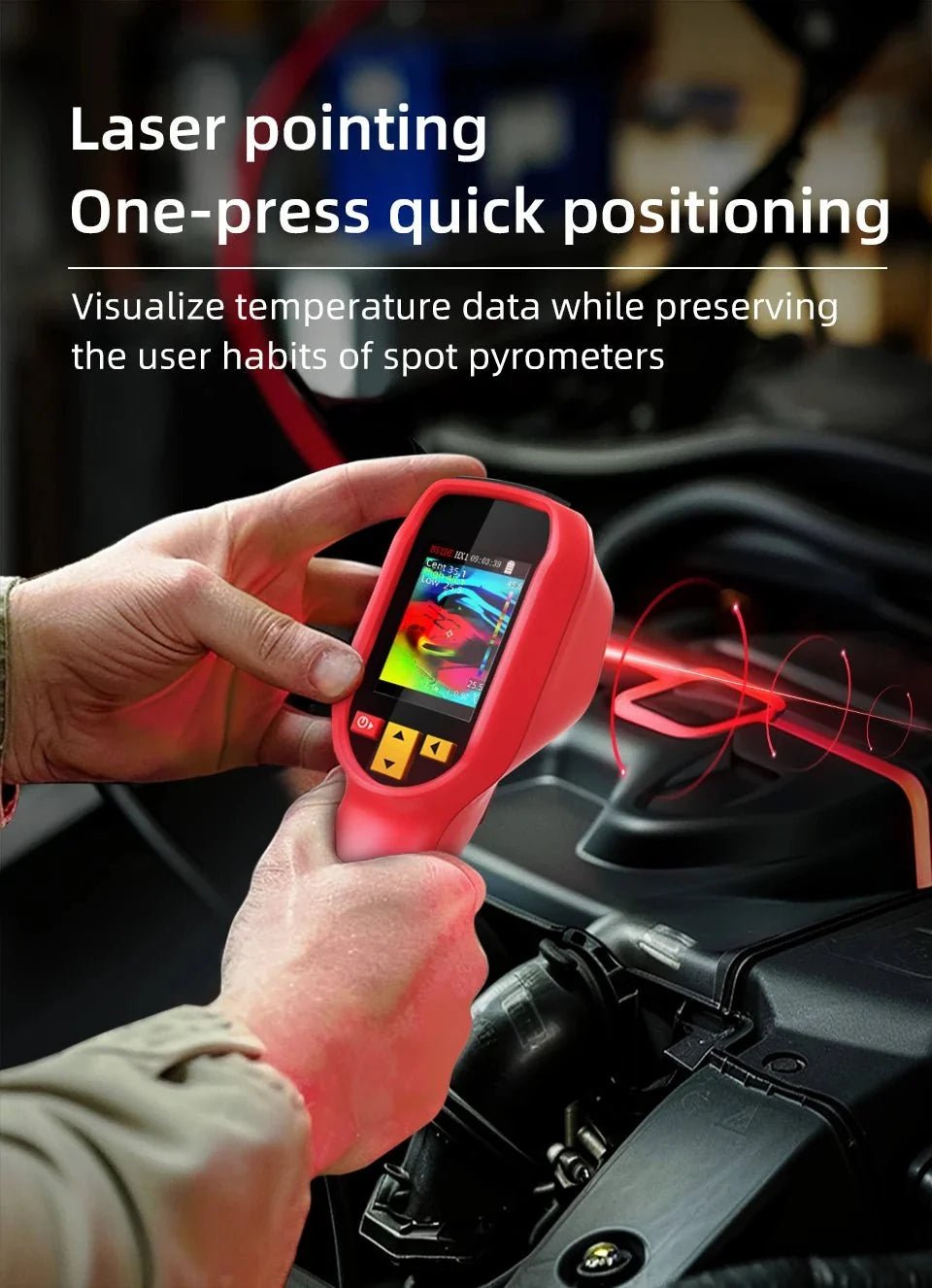

LaserPointer |
Yes |
Temperature Alarm |
Screen font color alarm |
Image storage |
Built-in memory card |
Number of image files |
30000 |
Image format |
BMP |
Shock/vibration |
GB/T 2423.5-2019;GB/T2423.10-2008 |
Electromagnetic compatibility(EMC) |
GB/T17799.2,GB17799.3-2012 |
Protection level |
IP54 |
Installation mode |
Tripod mount UNC-20 |
Focus mode |
Auto focusing |
Hardware interface |
Type-C USB |
Battery type |
Rechargeable lithium battery |
The working hours of the battery |
>7h@25℃ |
Charging time |
<3h@25°��� |
Charging |
5V/2A |
Boot speed |
~8 seconds |
Automatic shutdown |
Diable(default) |
Operating temperature |
-10°C~50°C |
Storage temperature |
-40°C~70°℃ |
Working humidity |
≤85%RH(Non-condensing) |
Drop |
1.5m |

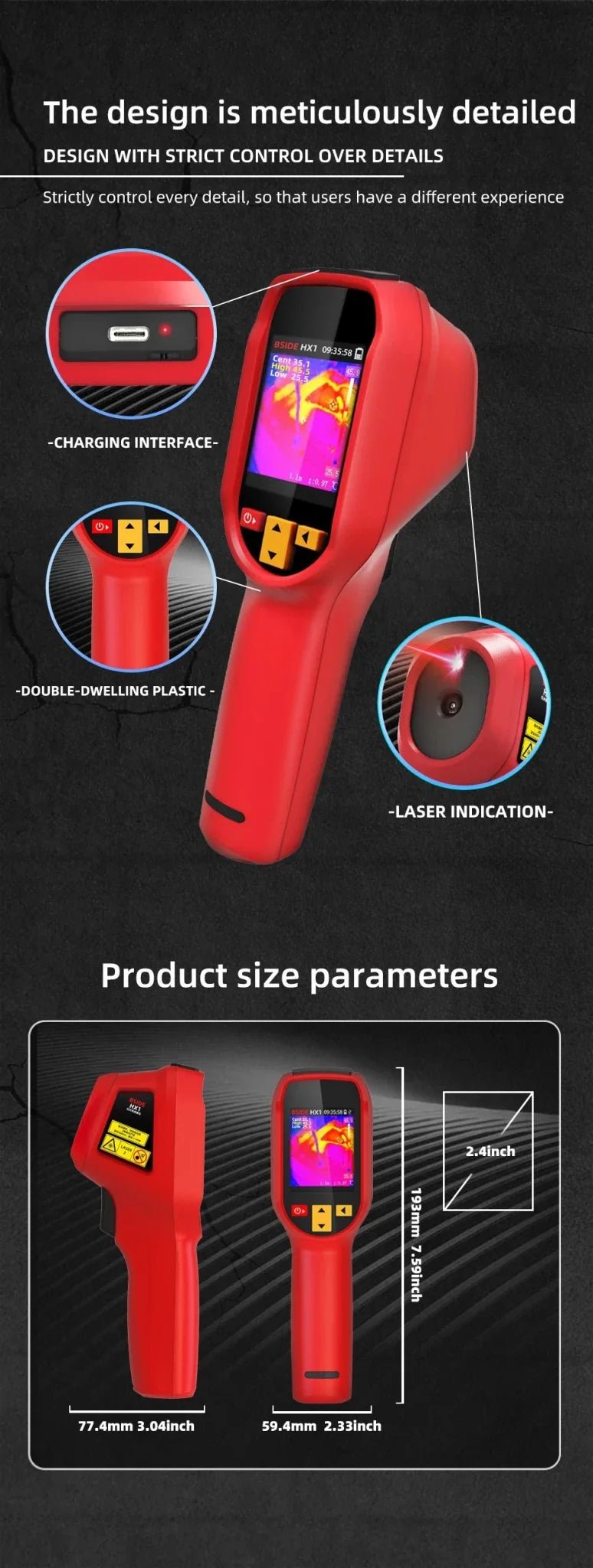

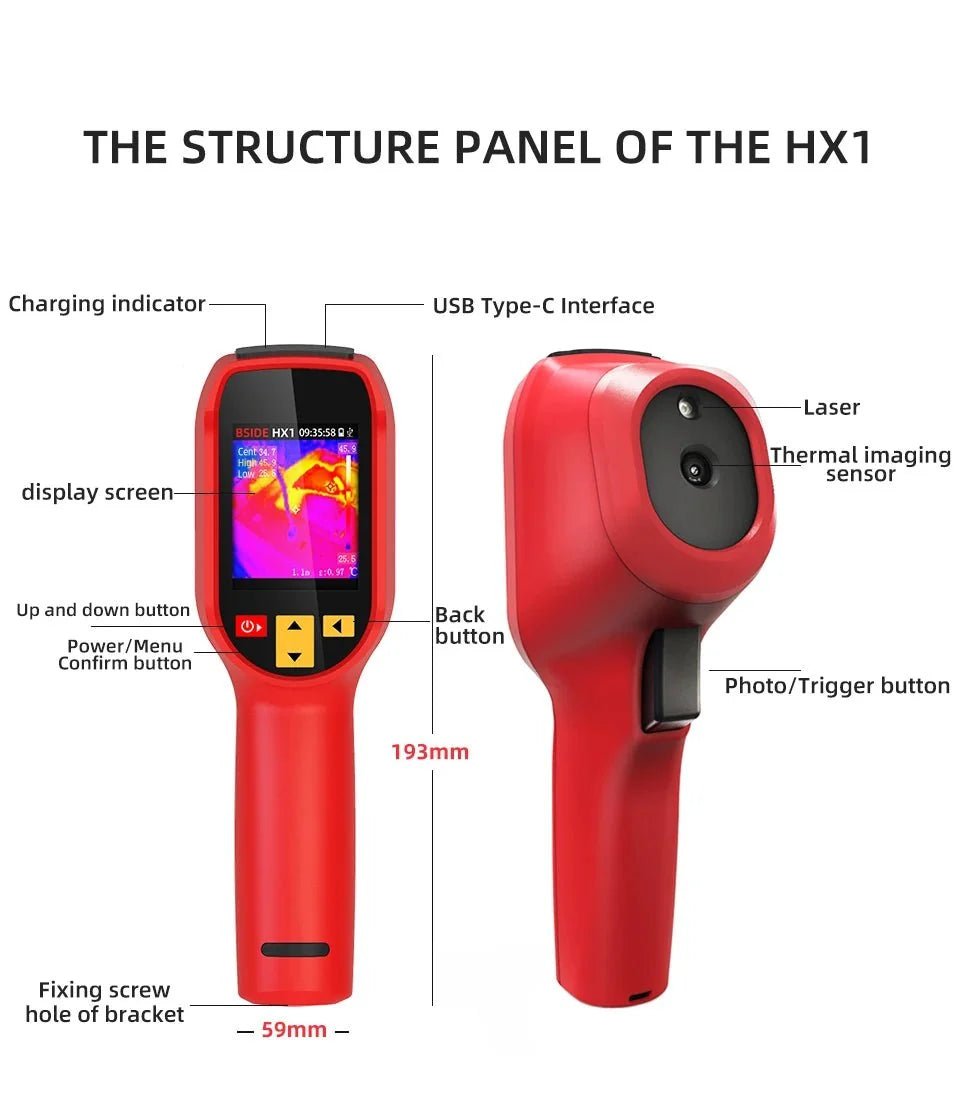

Product dimensions |
193.4*59.4*77.4mm |
Product weight |
277g |
