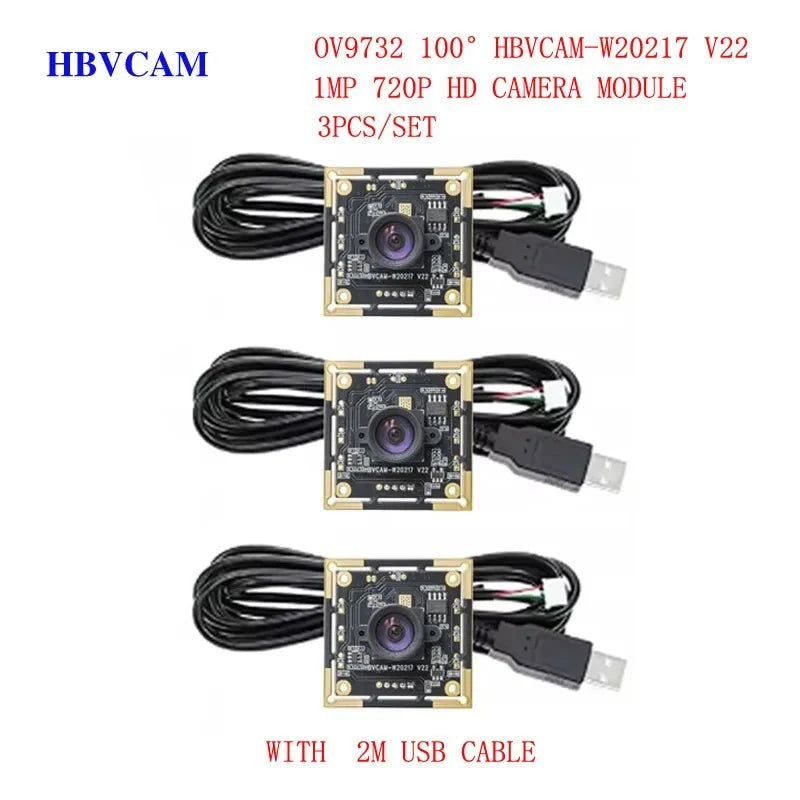

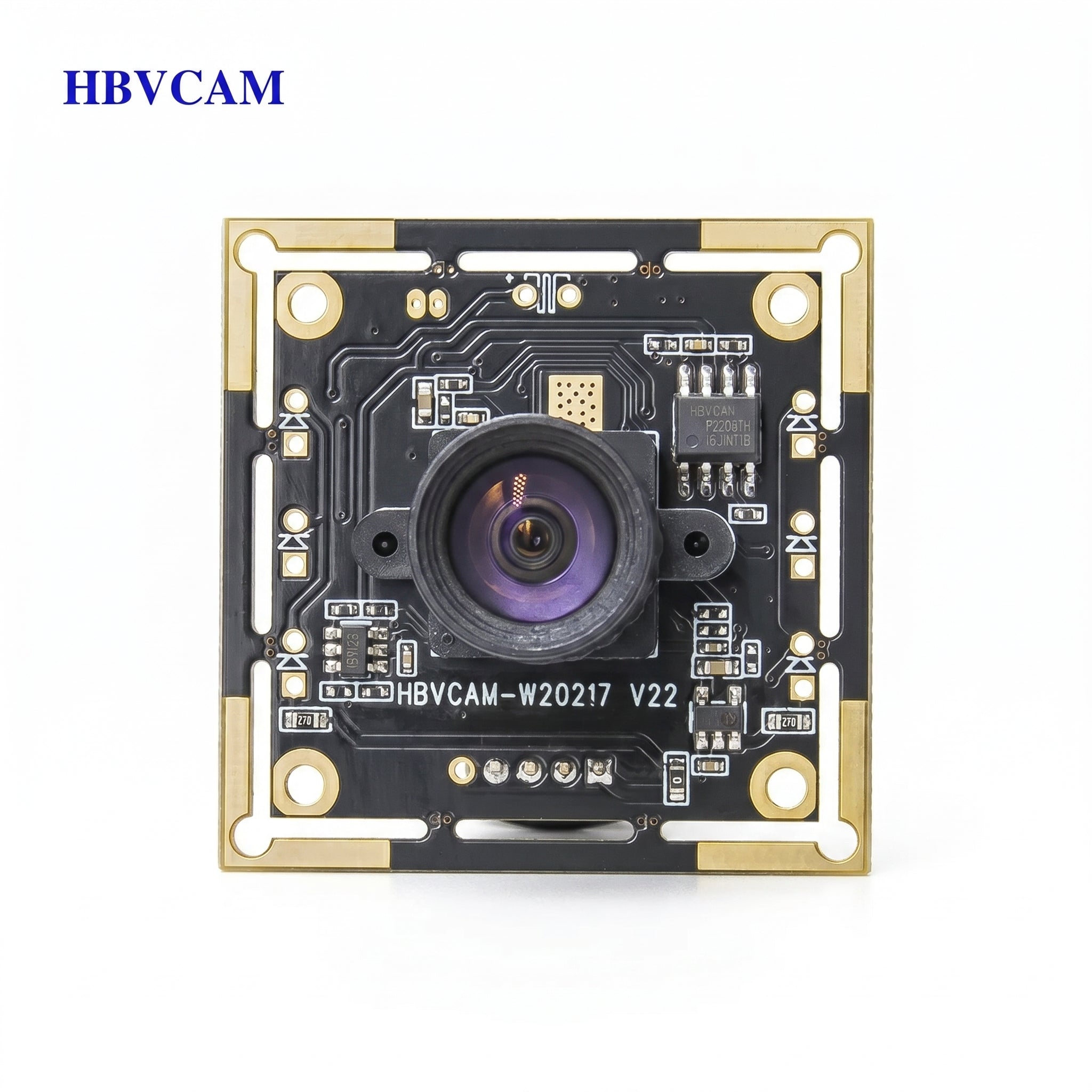

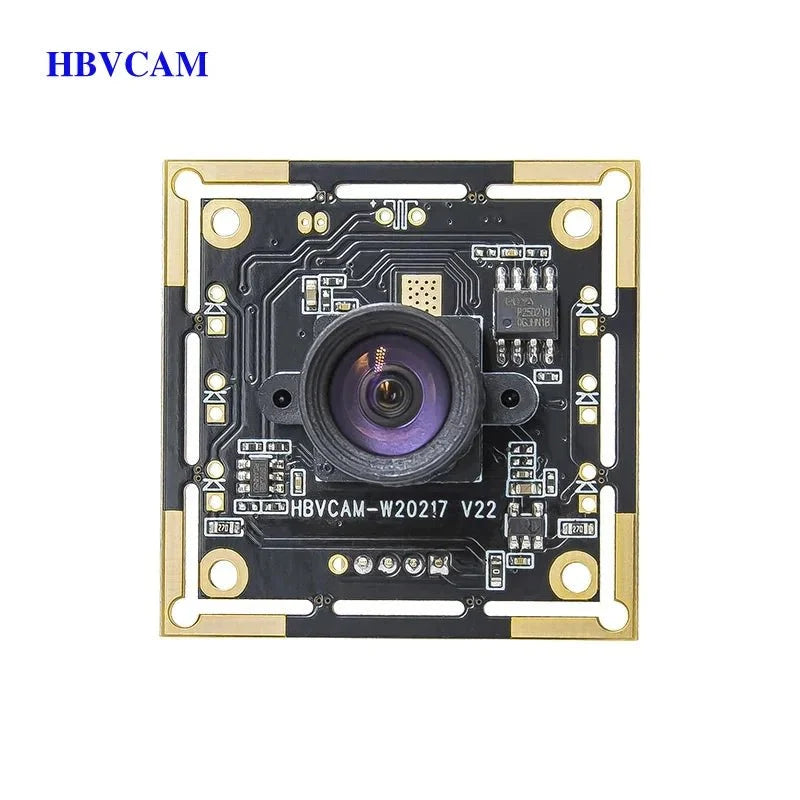

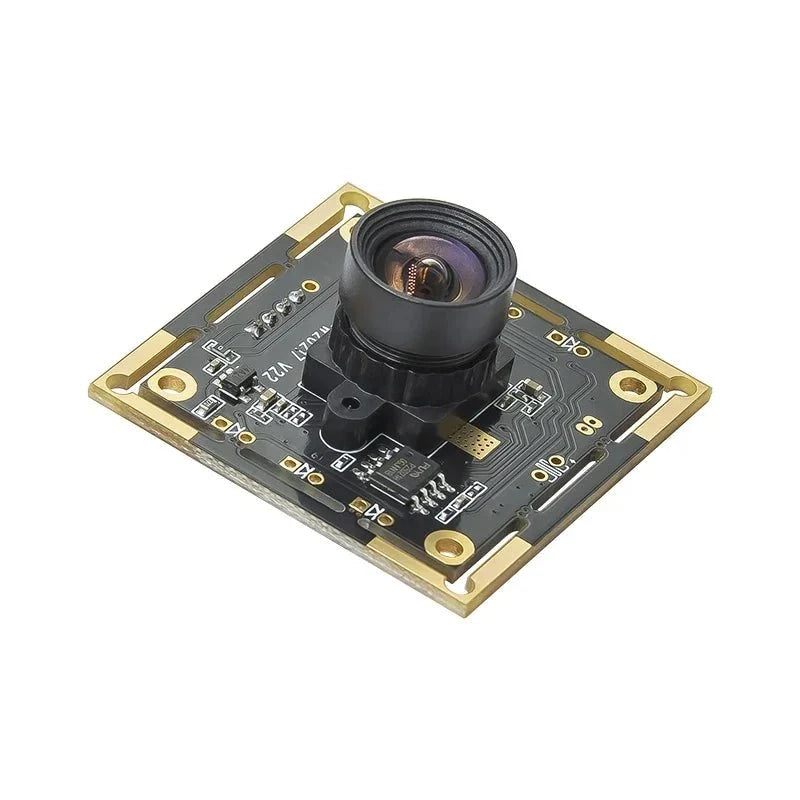

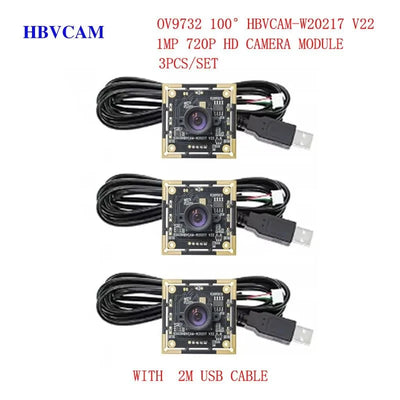

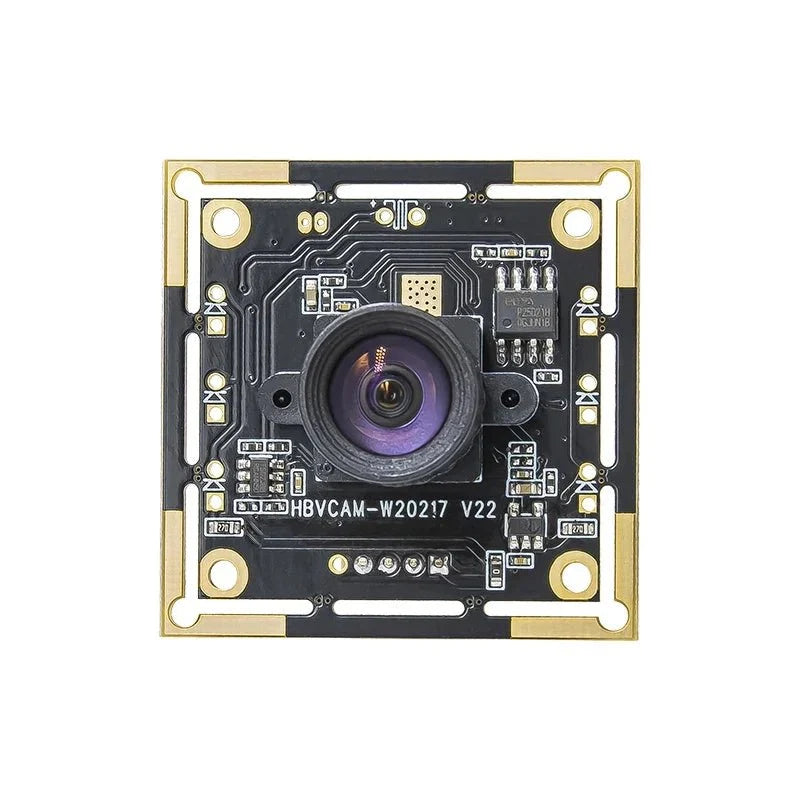

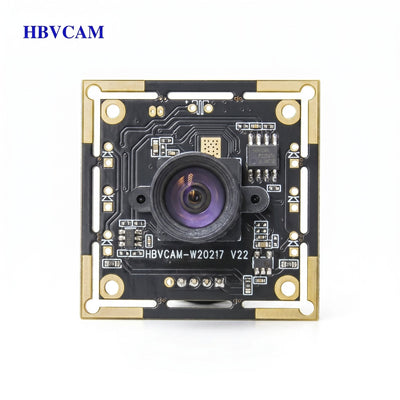

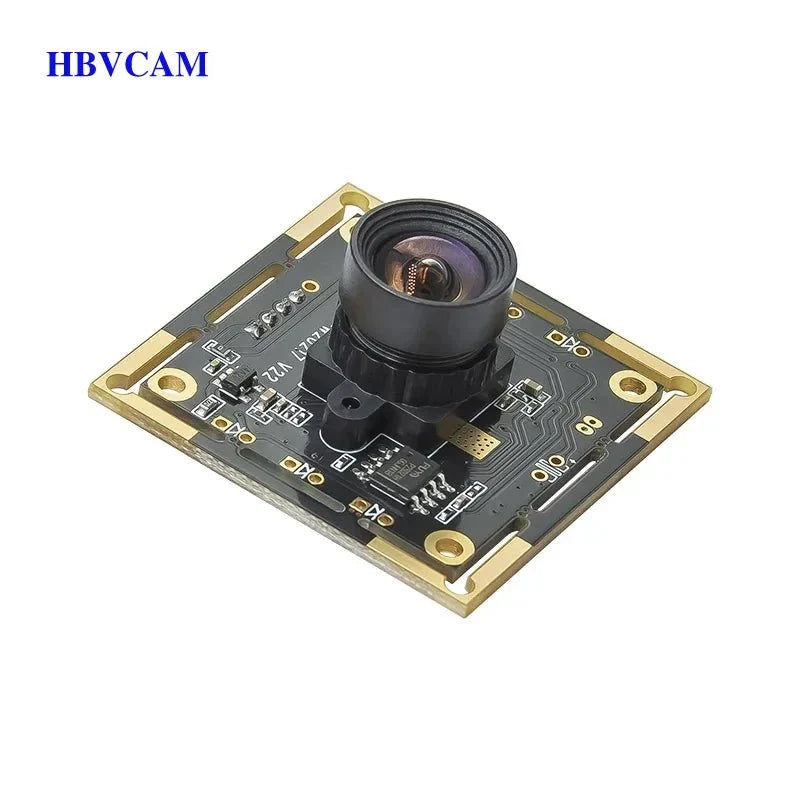

Smart USB Camera Module for Autodarts
Smart USB Camera Module for Autodarts is a compact, plug‑and‑play vision device designed for autodarts systems. Built for hobbyists, arcade operators, and competitive players, it delivers reliable hit capture with UVC compatibility and minimal setup. This Smart Products for Better Living accessory enhances scoring accuracy, speeds matches, and supports DIY upgrades by providing high‑contrast video, broad OS support, and easy integration.
- USB 2.0 interface with UVC plug‑and‑play
- Resolution up to 1280x720; MJPEG/YUY2 formats
- Fixed focus from 30 cm to infinity; FOV 100°
- OV9732 sensor, 1/4\"; compact 38×38×24.5 mm
- Low power: 5V, max 450 mW; operating temp -30°C to 70°C
Benefits: improves scoring accuracy, ensures consistent image quality, and enables quick integration into existing autodarts setups for real‑time analytics.
Product Specifications

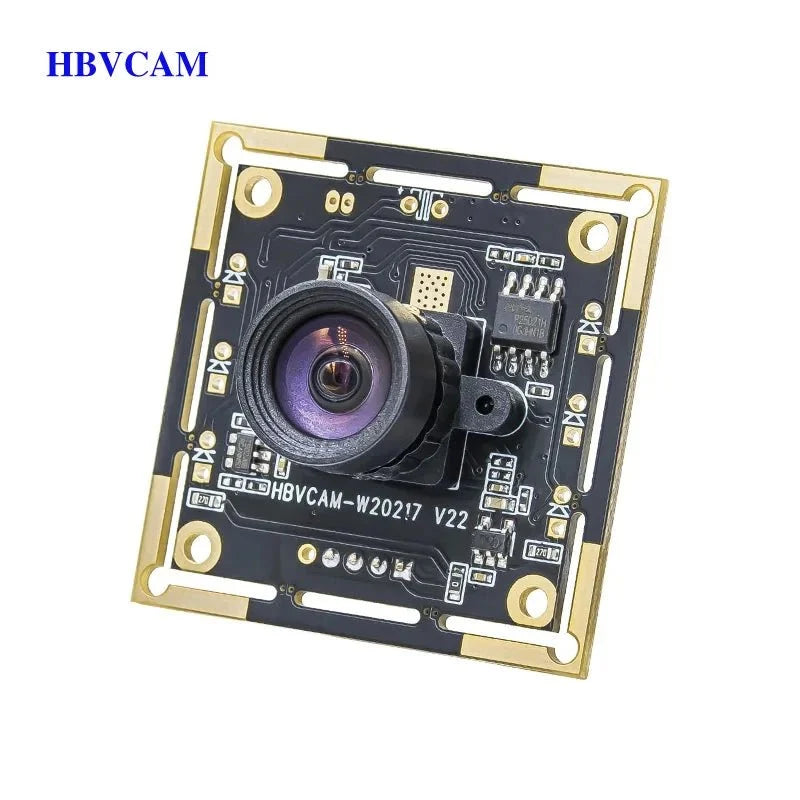

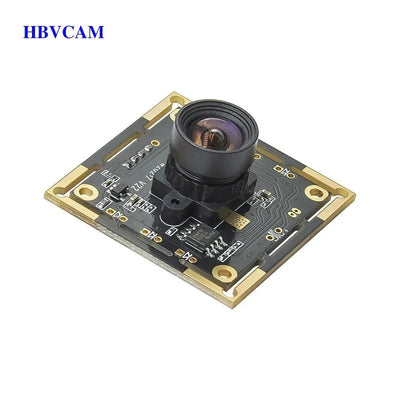

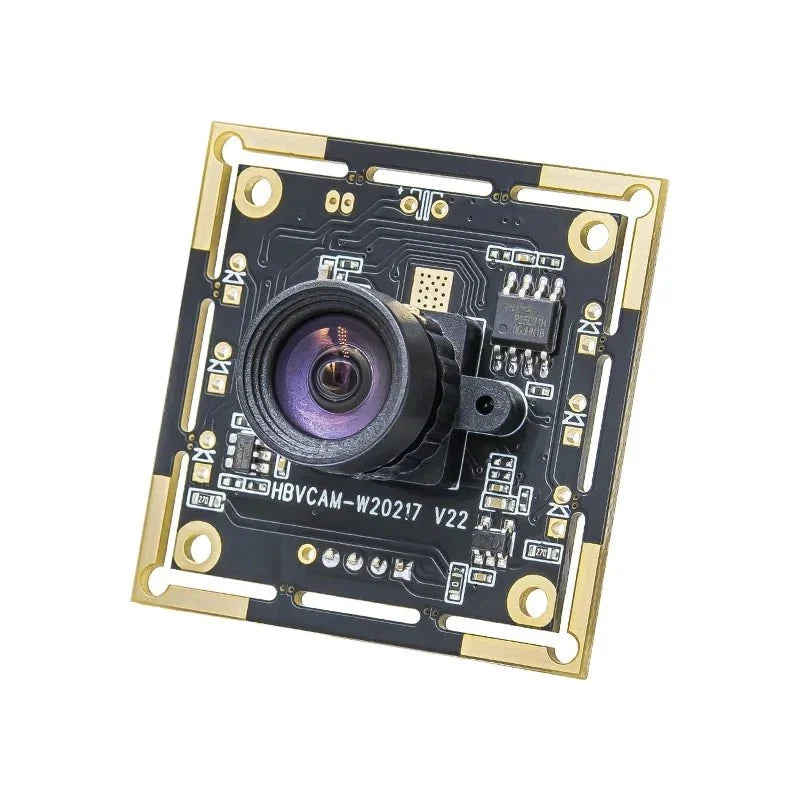

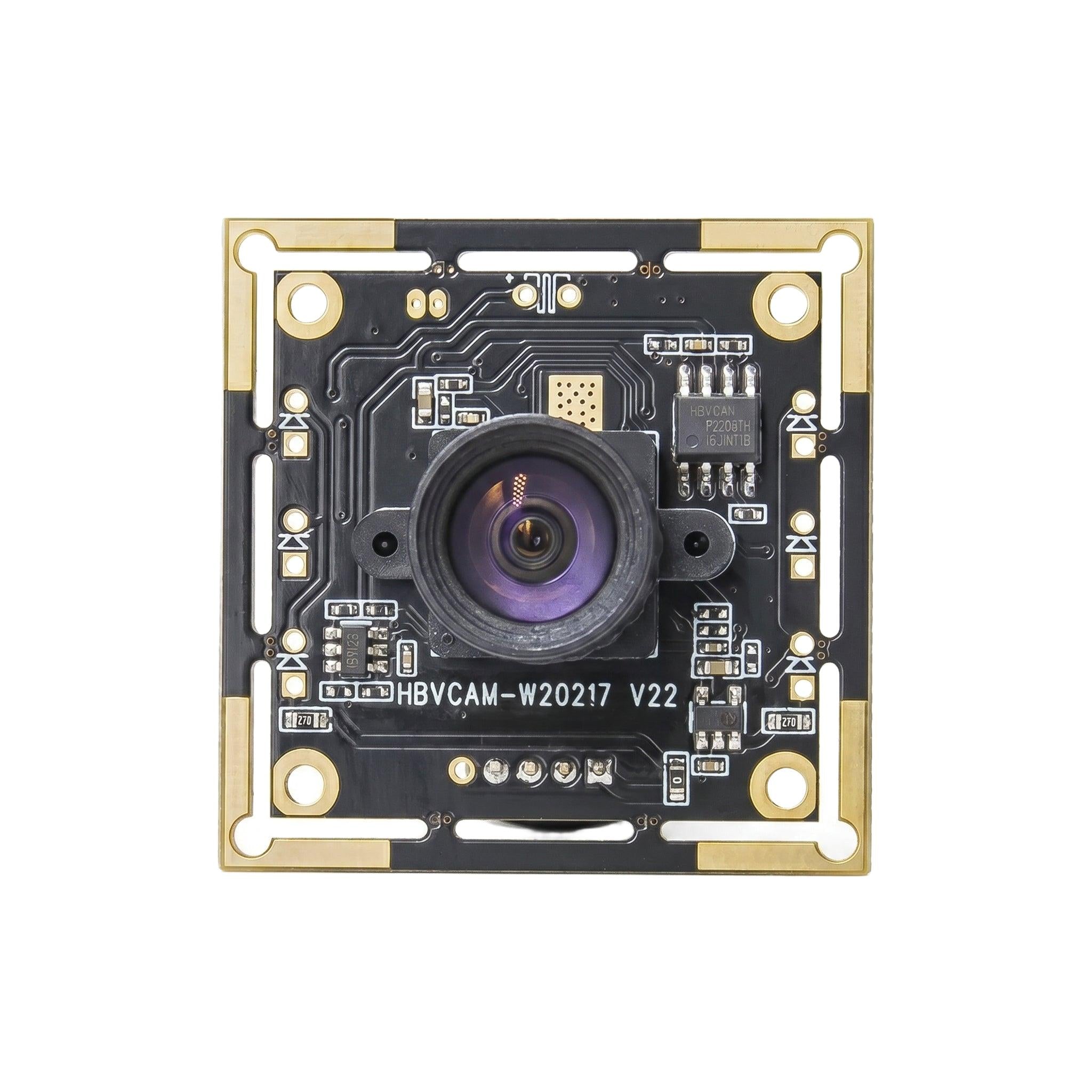

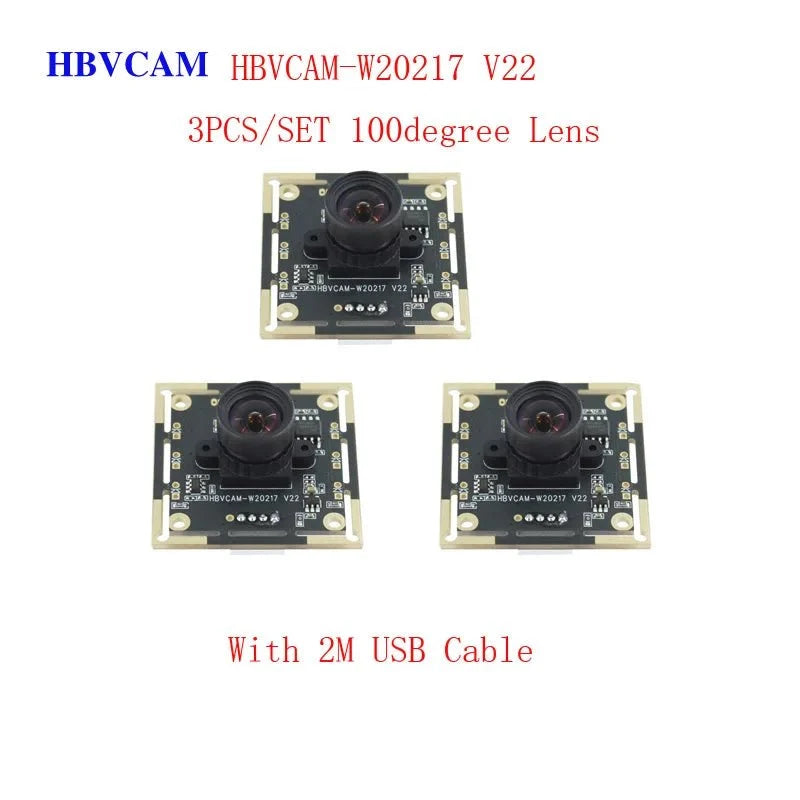

- Module No.: HBVCAM-W20217 V22
- Module Size: 38×38×24.5 mm
- Temperature (Operation): -30°C to 70°C
- Focus: 30 cm to infinity
- Sensor: OV9732 (1/4\")
- Interface: USB 2.0
- Resolution: Up to 1280×720
- Output Formats: YUY2 / MJPEG
- Power: USB bus power, DC 5V ±5%; max 450 mW
- Lens: F/2.2, FOV 100°
- SNR: 39 dB; Dynamic Range: 72 dB
- Shutter: Electronic rolling
- AGC/AEC/White balance: Auto
- Mic: No
- Certifications: FCC / CE / ROSH
Who It's For
Autodarts players, DIY builders, arcade operators, and enthusiasts seeking precise hit verification and reliable video input for dart scoring systems.
Frequently Asked Questions

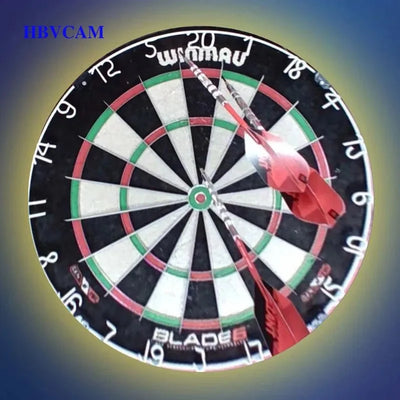

- What is this camera for? Real‑time hit capture and dart‑vision for autodarts scoring.
- Does it require drivers? No—it's a UVC device, plug‑and‑play on Windows, macOS, Linux, and Android.
- Can it be used with other devices? Yes, with USB video class compatible systems.
- Is there a microphone? No.
Use Cases

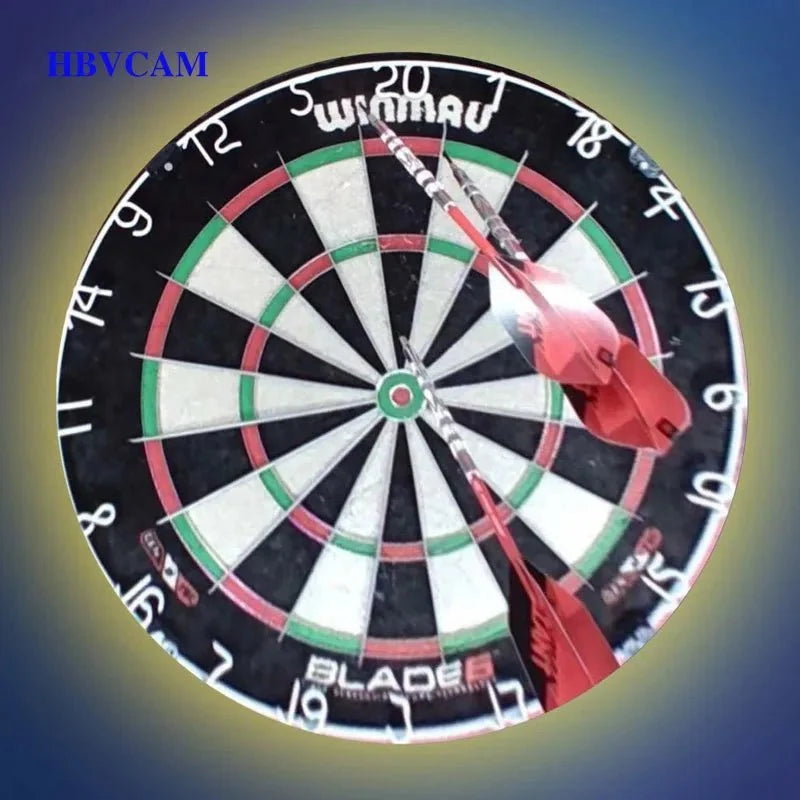

- Real‑time scoring verification and training analytics for autodarts games

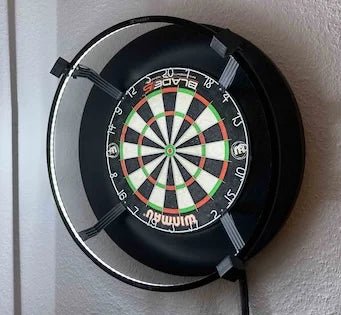

- Retrofit and upgrade existing dart boards or custom dart setups
This product is part of Stepyours's collection of practical products designed to make everyday life easier, more comfortable, and more enjoyable.
|
ModuleNo. |
HBVCAM-W20217 V22 |
Module Size |
38mm×38mm×24.5mm±0.5MM |
Temperature (Operation) |
-30°Cto 70°C |
Temperature (Stable Image) |
0°Cto 50°C |
Assemblytechnique |
SMT (ROSH) |
Focus |
Fixed |
Objectdistance |
30CM-infinity |
Resolution |
600LW/PH(Center) |
PCBprinting ink |
Black |
interface |
USB 2.0 |
Powersuuply |
USB bus power |
supply voltage |
DC 5V±5% |
MaximumPowerconsumption |
450mW |
Operating systemrequest |
WinXP/win7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor |
OV9732(1/4”) |
Seneor Package |
CSP,Bare Die |
Maximum resolution |
1280*720 |
Sensitivity |
3300mV/（lux-sec） |
PixelSize |
3µmx 3µm |
MaximumImage TransferRate |

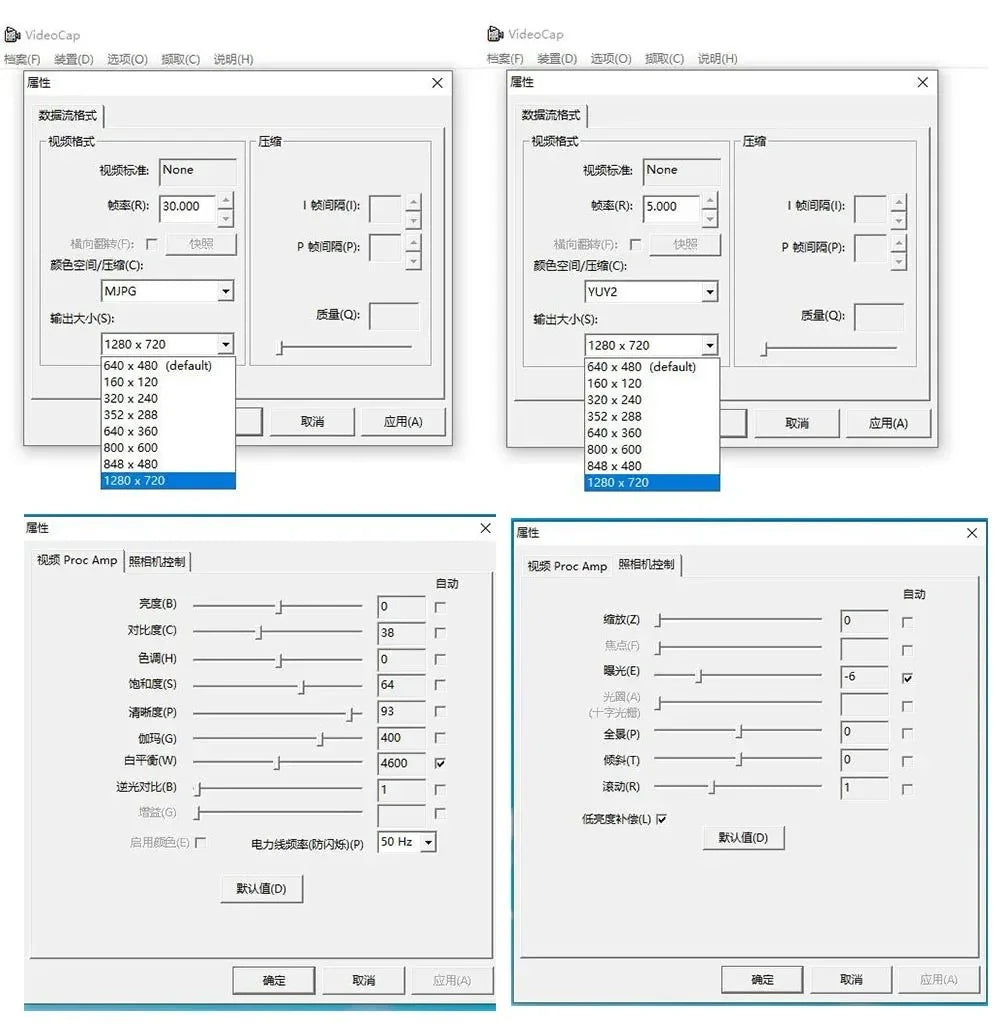

MJPEG 640x36030FPS / YUY2 640x36030FPS MJPEG 640x48030FPS / YUY2 640x48030FPS MJPEG 800x60030FPS / YUY2 800x60015FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS |
S/NRatio |
39db |
Max Dynamic Range |
72db |
Shutter type |
Electronic rolling shutter |
AGC/AEC/Whiterbalance |
Auto |
OutputFormats |
YUY2/MJPEG |
Microphone |
NO |
Lens Construction |
2G2P |
F/No |
2.2 |
EFL |
2.1mm |
FOV |
100° |
TVDistortion |
<5% |
Relative Illumination (Sensor) |
70% |
IRFilter |
650±10nm |
Module Package |
Anti-electrostatic tray |
Certifications |
FCC/CE/ROSH |
